Description
Specifications
Color
C1 – ck16/black-white full matt
kw – black/white-ck16 full matt
Sizes
430 470 510 550 590
Frame
C-sport gent alu disc, 700c old 135mm, integrated cable routing, smooth welding, 1.1/8″ headtube (semi-integrated down ht tube and integrated in top ht tube). Seat tube 31.6mm, size: 43,47,51,55,59cm
Fork
Bianchi alu disc
Headset
Fsa no.8b/zs4d 1.1/8″
Shifters
Shimano st-ef505 3x8sp
Rear Derailleur
Shimano acera rd-m360-l sgs 8sp
Front Derailleur
Shimano tourney fd-ty700-ts3
Crankset
Shimano fc-ty301 42x34x24t, crank length: 170mm-43/47cm, 175mm-51/59cm
Bb
Shimano bb-un100
Chain
Kmc z-72
Sprocket
Shimano cs-hg200-8, 12-14-16-18-21-24-28-32t
Brakes
Shimano altus br-mt200
Brake Levers
Included w/brakeset
Wheels
Alex rim atd470 disc
Rear Hub
Formula cl-1422
Front Hub
Formula cl-1420
Tire
Kenda eurotrek 700×35
Stem
3d forged al6061, 12°, 31.8mm, 1.1/8″, ext: 70mm-43cm, 100mm-47/51cm, 120mm-55/59cm
Handlebar
Alloy 6061 db, flat bar, width: 620mm, 9° bend, 31.8mm
Grips
Bianchi ergonomic double density, black/ck
Seatpost
Al6061 shaft, alloy head, 15mm offset, diam. 31.6mm, length 350mm
Saddle
Bianchi, steel rail
Rotor
Shimano sm-rt10, 160mm, center lock
Pedals
Included

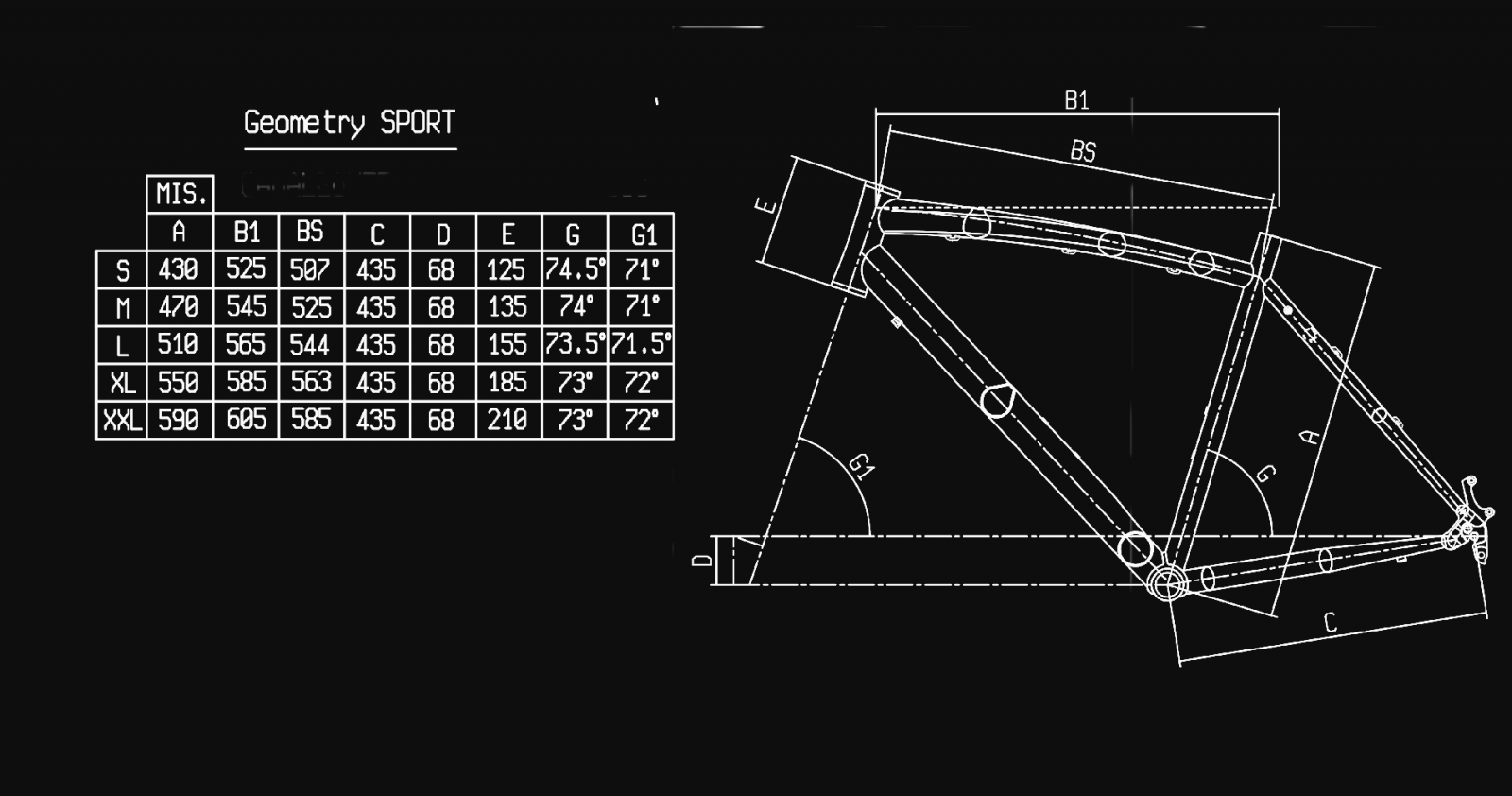

Geometry
