Kona Hei Hei

Decades of cross-country racing and punishing rides have helped us refine our long-standing XC race bike. The Hei Hei features updated geometry for a more comfortable ride, a shorter stem length, a 120mm travel RockShox Revelation RC fork, a SRAM NX/GX Eagle 12-speed drivetrain, more powerful Shimano brakes, and deep dropper post insertion.

COLOR:               Gloss Rust-Orange w/ Dark Seafoam

$2,999.00

Kona Bikes Hei Hei Side View Venice Los Angeles
Kona Bikes Hei Hei Side View Venice Century City
Kona Bikes Hei Hei Crankset Venice Mar Vista
Kona Bikes Hei Hei Tire Venice West La
Kona Bikes Hei Hei Rear Derailleur Venice Culver City
Kona Bikes Hei Hei Pipe Venice Venice
Kona Bikes Hei Hei Tire Culver City Los Angeles

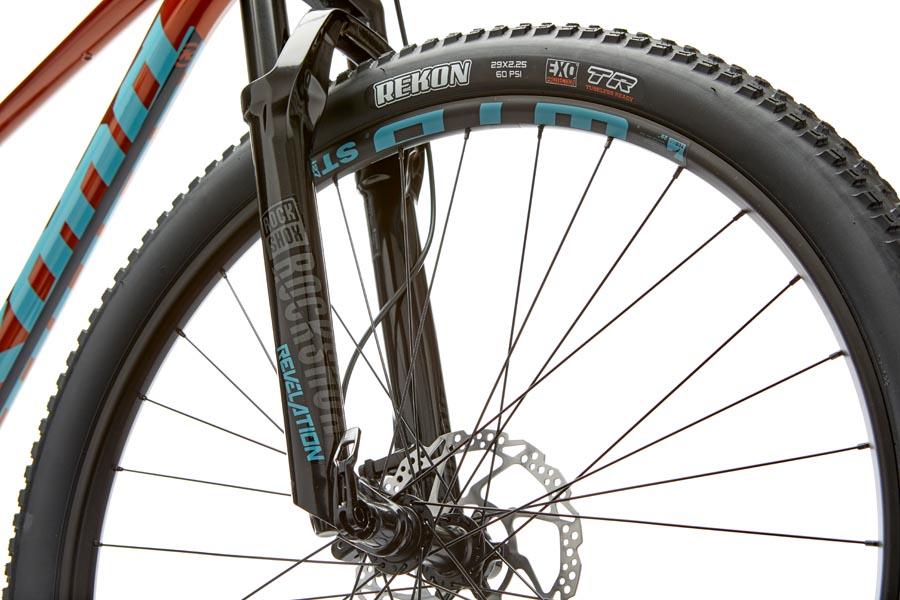

Kona Bikes Hei Hei Tire Culver City Century City
Kona Bikes Hei Hei Handlebar Culver City West La

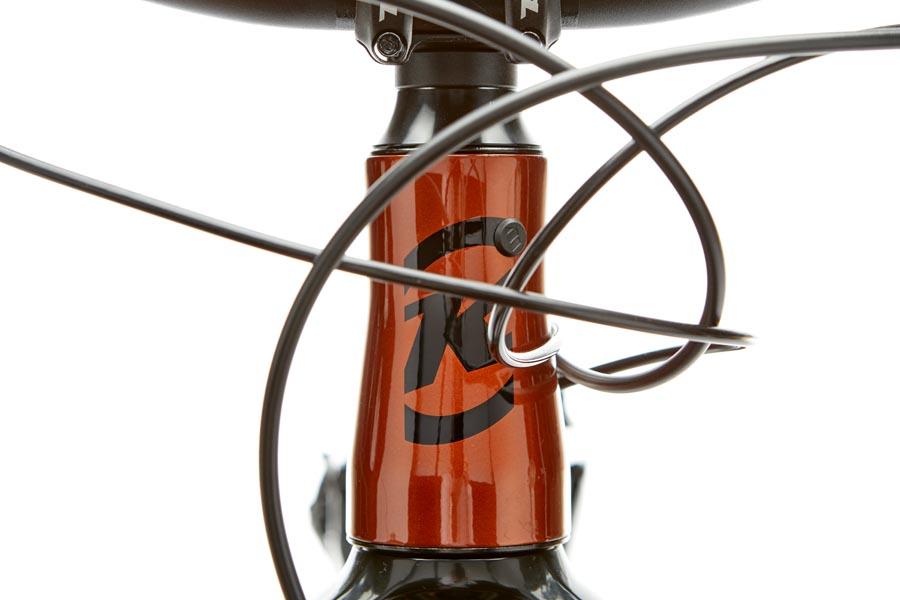

Kona Bikes Hei Hei Wires Culver City Venice

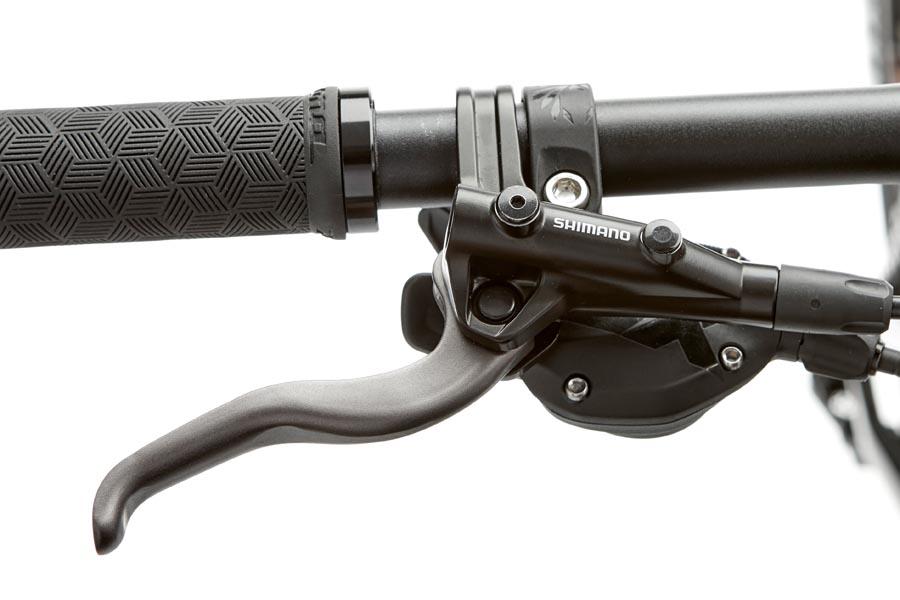

Kona Bikes Hei Hei Brake Culver City Culver City
Kona Bikes Hei Hei Crankset West La Los Angeles
Kona Bikes Hei Hei Pump West La Century City
Kona Bikes Hei Hei Front West La Mar Vsta

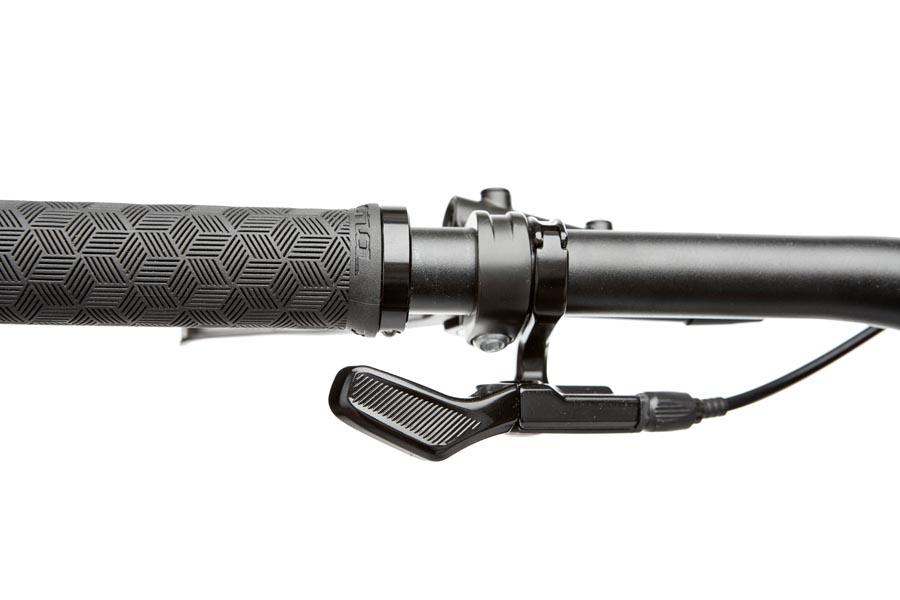

Kona Bikes Hei Hei Bell West La West La
Kona Bikes Hei Hei Tire West La Culver City
Kona Bikes Hei Hei Saddle Los Angeles Los Angeles

Why Buy at a Local Bike Bike?

Free Adjustments for Life

Any bike you buy from Bike Shop California or Bike Shop Santa Monica comes with free adjustments for life from the orginal owner.

v

Real Expert Bike Advice

We could probably make more money doing something else…but we are passionate about bikes. That means are up to date on the current trends and bikes as well as what is coming next.

Support Local Business

We are a local business creating real jobs in the community and supporting the idea of pollution free mobility. Money purchased at local businesses go directly back to supporting local economies.

Kona Hei Hei Product Details

Specifications



Frame Material: Kona Race Light 6061 Aluminum Butted

Wheels: WTB ST i27 TCS 29”

Suspension Platform: Fuse

Front/Rear Suspension: 120mm/100mm

Rear Shock: RockShox Monarch RL Solo Air

Fork: RockShox Revelation RC DebonAir 120mm

Crankset: SRAM NX Eagle

Drivetrain: SRAM GX/NX Eagle 12spd

Brakes: Shimano hydraulic with 180mm front / 160 rear rotor

Seat Post: Trans-X Dropper Internal 31.6mm

Cockpit: Kona XC/BC 35 Bar/Kona XC/BC 35 Stem with Kona Key Grip

Front Tire: Maxxis Rekon EXO TR DUAL 29X2.25”

Rear tire: Maxxis Rekon EXO TR DUAL 29X2.25”

Saddle: WTB Volt Sport



MATERIAL Kona Race Light 6061 Aluminum Butted 100mm Travel
SIZES S, M, L, XL
REAR SHOCK RockShox Monarch RL Solo Air
FORK RockShox Revelation RC DebonAir 120mm Tapered 110mm Spacing
CRANKARMS SRAM NX-Eagle
CHAINRINGS 32t X-Sync Eagle
B/B SRAM DUB PF92
PEDALS n/a
CHAIN SRAM SX-Eagle
FREEWHEEL SRAM NX-Eagle 11-50t 12spd
CHAINGUIDE n/a
F/D n/a
R/D SRAM GX-Eagle
SHIFTERS SRAM SX-Eagle
BRAKE CALIPERS Shimano MT401 Hydraulic
FRONT BRAKE ROTOR Shimano RT54 180mm (centerlock)
REAR BRAKE ROTOR Shimano RT54 160mm (centerlock)
BRAKE LEVERS Shimano MT401 Hydraulic
HEADSET FSA No.57B
HANDLEBAR Kona XC/BC 35
STEM Kona XC/BC 35
SEATPOST Trans-X Dropper Internal 31.6mm
SEAT CLAMP Kona Clamp
GRIPS Kona Key Grip
SADDLE WTB Volt Sport (Volt 250 size S)
FRONT HUB Shimano 110x15mm (centerlock)
REAR HUB Shimano 148x12mm (centerlock)
SPOKES Stainless Black 2.0
RIMS WTB ST i27 TCS
FRONT TIRE Maxxis Rekon EXO TR DUAL 29×2.25″
REAR TIRE Maxxis Rekon EXO TR DUAL 29×2.25″
PAINT COLOR Gloss Rust-Orange w/ Dark Seafoam & Black Decals
EXTRAS n/a

*All specifications are subject to change without notice



Geometry



Kona Bikes Hei Hei Geometry Venice Los Angeles



                           mm                          inches
SIZE S M L XL S M L XL
1 ST LENGTH 370 420 470 530 14.6 16.5 18.5 20.9
2 TT LENGTH 582 610 639 677 22.9 24 25.2 26.7
3 REACH 415 440 465 500 16.3 17.3 18.3 19.7
4 STACK 593 602 612 621 23.3 23.7 24.1 24.4
5 STANDOVER 751 752 761 783 29.6 29.6 30 30.8
6 HT ANGLE 67.5 67.5 67.5 67.5 67.5 67.5 67.5 67.5
7 HT LENGTH 95 105 115 125 3.7 4.1 4.5 4.9
8 ST ANGLE 74.2 74.2 74.2 74.1 74.2 74.2 74.2 74.1
9 CS LENGTH 430 430 430 430 16.9 16.9 16.9 16.9
10 BB DROP 36 36 36 36 1.4 1.4 1.4 1.4
11 BB HEIGHT 339 339 339 339 13.3 13.3 13.3 13.3
12 WHEELBASE 1129 1158 1187 1226 44.4 45.6 46.7 48.3
13 FRONT CENTER 702 731 759 798 27.6 28.8 29.9 31.4
14 FORK LENGTH 526 526 526 526 20.7 20.7 20.7 20.7
15 FORK OFFSET 51 51 51 51 2 2 2 2



Sizing + Fit



ROAD/CX/ASPHALT

HEIGHT/INCHES HEIGHT/METRIC INSEAM/INCHES INSEAM/METRIC
4’10”-5’1″ 147-155 cm 24”-27” 61-69 cm
5’0″-5’3″ 152-160 cm 26″-29″ 66-74 cm
5’2″-5’7″ 157-170 cm 27″-30″ 69-76 cm
5’6″-5’10” 168-178 cm 29″-31″ 74-79 cm
5’9″-6’0″ 175-183 cm 30″-33″ 76-84 cm
5’11”-6’2″ 180-188 cm 32″-35″ 81-89 cm
6’1″-6’5″ 185-196 cm 33″-36″ 84-91 cm



ROAD/ROVE LIBRE CX/SUTRA DEWS COCO
46-48 cm 46 cm 46-48 cm N/A XS
48-50 cm 46-49 cm 48-50 cm Small Small
48-52 cm 49-51 cm 48-52 cm Small, Medium Small, Medium
52-54 cm 51-54 cm 52-54 cm Medium Medium
52-56 cm 54-55 cm 52-56 cm Medium, Large Medium, Large
54-58 cm 54-55 cm 54-58 cm Large, XL Large
56-58 cm 55 cm 56-58 cm XL N/A





MTB/ALL MOUNTAIN/GRAVITY

HEIGHT/INCHES HEIGHT/METRIC INSEAM/INCHES INSEAM/METRIC
4’10”-5’1″ 147-155 cm 24”-27” 61-69 cm
5’0″-5’3″ 152-160 cm 26″-29″ 66-74 cm
5’2″-5’7″ 157-170 cm 27″-30″ 69-76 cm
5’6″-5’10” 168-178 cm 29″-31″ 74-79 cm
5’9″-6’0″ 175-183 cm 30″-33″ 76-84 cm
5’11”-6’2″ 180-188 cm 32″-35″ 81-89 cm
6’1″-6’5″ 185-196 cm 33″-36″ 84-91 cm



SPLICE MTB/XC TRAIL/FAT ALL MOUNTAIN/ENDURO GRAVITY/DH
Small XS XS N/A
Small Small Small N/A
Small, Medium Small, Medium Small, Medium Medium
Medium Medium Medium Medium
Medium, Large Medium, Large Medium, Large Medium, Large
Large, XL Large, XL Large, XL Large, XL
Large, XL Large, XL Large, XL Large, XL





KONA RACE LIGHT 6061 ALUMINUM

Kona Race Light 7005 and 6061 are lighter, more performance-oriented fabrications of our 7005/6061 tubing. Designed to meet Kona’s discerning race specifications, Race Light 7005/6061 are custom butted to create thicker tubes at weld areas and important parts of the frame, providing incredible strength and torsional integrity to the feel of the ride. We remove wall thickness in other parts of the frameset to lighten up the bike, giving the perfect balance between quickness and stiffness.



INTERNAL HEADSET

Bearing cups are actually pressed into the frame and are easily removable. An internal headset also reduces stack height, so the height of the stem and bars are more adjustable, giving the rider the best fit possible.



TAPERED HEAD TUBE

More girth at the bottom of the head tube better distributes shock force, prolonging the bearing life of the headset itself and eliminating brake shudder, while providing confident steering performance. The inherent strength of its triangular design also means a stronger steering position and improved balance, giving the rider more control in rough terrain. A zero-stack, tapered head tube also puts strength where the load is going—into the lower headset cup—maximizing bearing durability where it’s needed.



12x148mm AXLE

12x142mm, 12×148 and 12×157 rear axle standards provide two major advantages to the Kona rider: the 12mm diameter of the rear axle provides the rear hub and frame with a stiff interface, while the 142/148/157mm outer diameter of the hub allows the wheel to be quickly and properly positioned in the frame before the rear axle is inserted. For 2017, you’ll see the 12×148 Boost standard in the mix. Boost spacing provides more tire clearance at the chainstay yoke, while the rear wheel is stiffer and more durable relative to a 12×142 thru-axle.



FUSE INDEPENDENT SUSPENSION

The Fuse Independent Suspension is designed to be as lightweight and efficient as possible, oriented specifically for the demands of the modern XC trail rider. Like all of our suspension platforms, the Fuse IS is designed around a single pivot with a predictable leverage ratio for a responsive, snappy feel. Built for our Hei Hei platform, the frame features a seat stay that relies on small degrees of frame flex rather than a pivot at the seat and chainstay junction. The result is an efficient, laterally stiff suspension system that takes weight savings to a new level.



LIFETIME WARRANTY

Register a new Kona bike within three months of purchase, and the original owner qualifies the Kona frame for a free Lifetime Warranty. Note: this does not apply to Kona Carbon models.

ONE-YEAR LIMITED WARRANTY ON COMPLETE BICYCLE
Kona warrants to the original owner that this new Kona bicycle shall be free of defective materials and workmanship for a period of one year from the date of original purchase in the United States or Canada and operated under normal conditions and use. During this one-year period, Kona shall repair or replace, at its sole option, all parts that are found by Kona to be defective and subject to this limited warranty. The original owner shall pay all labor charges connected with the repair or replacement of all parts.

LIFETIME LIMITED WARRANTY ON BICYCLE FRAME
When warranty on non-carbon Kona bikes and frames is NOT registered within three months of purchase, Kona warrants to the original owner that the frame of this new Kona bicycle purchased from an authorized Kona dealer shall be free of defective materials or workmanship for a three-year period. IF THE WARRANTY IS REGISTERED WITH KONA WITHIN THREE MONTHS AFTER THE PURCHASE OF THE BICYCLE, THE WARRANTY IS EXTENDED FOR THE LIFETIME OF THE ORIGINAL OWNER, with the exception of carbon bikes and frames. During warranty period, Kona shall repair or replace, at its sole option, the bicycle frame if Kona determines the frame is defective and subject to this limited warranty. The original owner shall pay all labor and shipping charges connected with the repair or replacement of the bicycle frame. Please see the Kona owner’s manual, provided with your bicycle, for additional information.

Note: this Limited Lifetime Warranty applies to purchases from Kona U.S.A., Kona Canada and Kona Europe.
