Kona Honzo ST

Deciding which Kona is our favorite is like picking your favorite child. Everyone has one, but we don’t really speak about it. Hint, hint…we love the Honzo ST. We’ve built the bike to be gearless and fearless with modular dropouts, so you can go full custom, or run it as we spec it, with a 120mm RockShox Revelation RC fork, SRAM NX 1×11 speed drivetrain, and SRAM Level T brakes.

COLOR:                Gloss Battleship Grey w/ Black, Lime

$2,299.00

Kona Bikes Honzo ST Side View Venice Los Angeles
Kona Bikes Honzo ST Side View Venice Century City
Kona Bikes Honzo ST Crankset Venice Century City

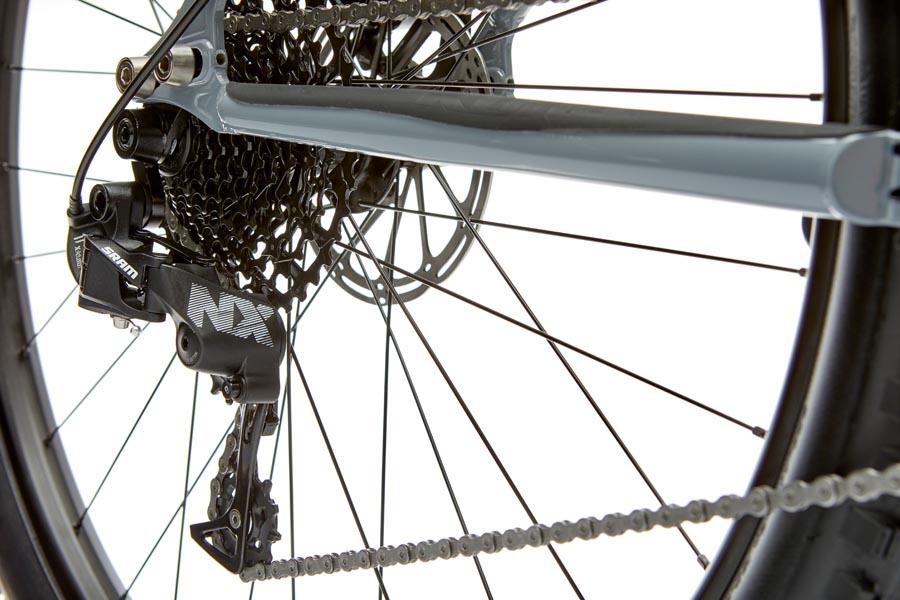

Kona Bikes Honzo ST Rear Derailleur Venice West La
Kona Bikes Honzo ST Pipe Venice Mar Vista
Kona Bikes Honzo ST Front Tire Venice Venice
Kona Bikes Honzo ST Cockpit Venice Culver City
Kona Bikes Honzo ST Wires Culver City Los Angeles
Kona Bikes Honzo ST Brakes Culver City Century City
Kona Bikes Honzo ST Gears Culver City Mar Vista

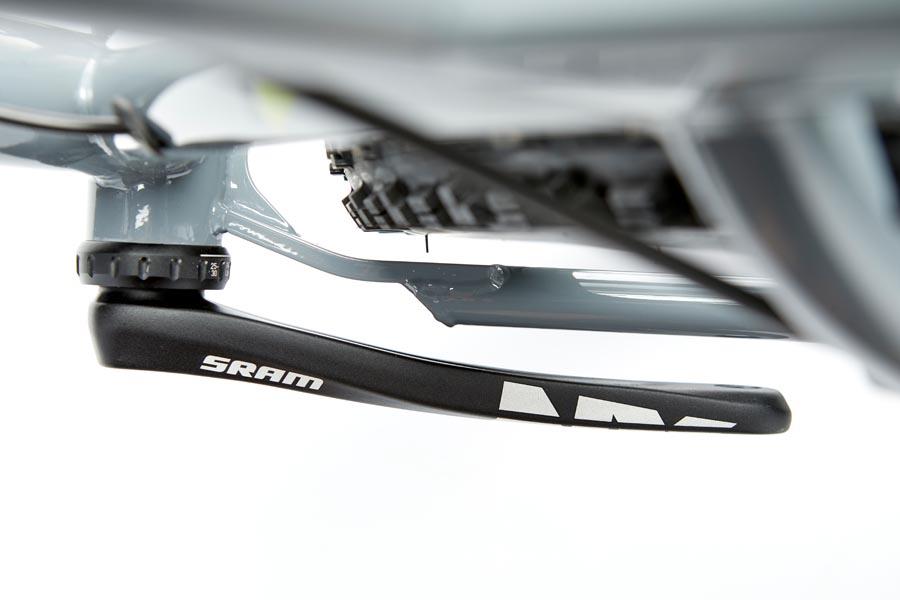

Kona Bikes Honzo ST Part Culver City West La
Kona Bikes Honzo ST Pipe Culver City Venice
Kona Bikes Honzo ST Saddle Culver City Culver City
Kona Bikes Honzo ST Handle West La Los Angeles
Kona Bikes Honzo ST Handlebar West La Century City

Why Buy at a Local Bike Bike?

Free Adjustments for Life

Any bike you buy from Bike Shop California or Bike Shop Santa Monica comes with free adjustments for life from the orginal owner.

v

Real Expert Bike Advice

We could probably make more money doing something else…but we are passionate about bikes. That means are up to date on the current trends and bikes as well as what is coming next.

Support Local Business

We are a local business creating real jobs in the community and supporting the idea of pollution free mobility. Money purchased at local businesses go directly back to supporting local economies.

Kona Honzo ST Product Details

Specifications



Frame Material: Kona Cromoly steel w/ adjustable dropouts

Wheels: WTB ST i29 29” TCS rims

Fork: RockShox Revelation RC DebonAir Motion Control 120mm

Crankset: SRAM NX

Drivetrain: SRAM NX 11spd

Brakes: SRAM Level T with 180mm front / 160mm rear rotor

Seat Post:Trans-X dropper post Internal 31.6mm

Cockpit: Kona XC/BC 35mm Bar/ XC/BC 35 Stem with Kona Lock-on Key Grip

Front Tire: Maxxis DHF EXO TR 3C 29×2.3”

Rear Tire: Maxxis DHF EXO TR Dual 29×2.3”

Saddle: WTB Volt Comp



FRAME MATERIAL Kona Cromoly Butted
SIZES S, M, L, XL
REAR SHOCK n/a
FORK RockShox Revelation RC DebonAir Motion Control 120mm Tapered 110mm Spacing
CRANKARMS SRAM NX
CHAINRINGS 32t Narrow/Wide
B/B SRAM GXP 73mm
PEDALS n/a
CHAIN SRAM PC1110
FREEWHEEL SRAM PG1130 11-42t 11spd
CHAINGUIDE n/a
F/D n/a
R/D SRAM NX
SHIFTERS SRAM GX
BRAKE CALIPERS SRAM Level T
FRONT BRAKE ROTOR SRAM Centerline 180mm
REAR BRAKE ROTOR SRAM Centerline 160mm
BRAKE LEVERS SRAM Level T
HEADSET FSA No.57B
HANDLEBAR Kona XC/BC 35
STEM Kona XC/BC 36
SEATPOST Trans-X Dropper Internal 31.6mm
SEAT CLAMP Kona Clamp
GRIPS Kona Key Grip
SADDLE WTB Volt Comp (Comp 250 size S)
FRONT HUB Formula 110x15mm
REAR HUB Formula 148x12mm
SPOKES Stainless Black 14g
RIMS WTB ST i29 TCS
FRONT TIRE Maxxis Minion DHF EXO TR 3C 29×2.3″
REAR TIRE Maxxis Minion DHF EXO TR DUAL 29×2.3″
PAINT COLOR Gloss Battleship Grey w/ Black, Lime & Dark Grey Decals
EXTRAS n/a

*All specifications are subject to change without notice



Geometry



Kona Bikes Honzo ST Geometry Venice Los Angeles



                             mm                       inches
SIZE S M L XL S M L XL
1 ST LENGTH 381 432 478 508 15 17 18.8 20
2 TT LENGTH 598 626 655 693 23.5 24.6 25.8 27.3
3 REACH 425 450 475 510 16.7 17.7 18.7 20.1
4 STACK 624 633 642 651 24.6 24.9 25.3 25.6
5 STANDOVER 713 711 710 708 28.1 28 28 27.9
6 HT ANGLE 68 68 68 68 68 68 68 68
7 HT LENGTH 90 100 110 120 3.5 3.9 4.3 4.7
8 ST ANGLE 74.5 74.5 74.5 74.5 74.5 74.5 74.5 74.5
9 CS LENGTH 415 415 415 415 16.3 16.3 16.3 16.3
10 BB DROP 65 65 65 65 2.6 2.6 2.6 2.6
11 BB HEIGHT 310 310 310 310 12.2 12.2 12.2 12.2
12 WHEELBASE 1115 1144 1173 1211 43.9 45 46.2 47.7
13 FRONT CENTER 708 737 766 804 27.9 29 30.2 31.7
14 FORK LENGTH 528 528 528 528 20.8 20.8 20.8 20.8
15 FORK OFFSET 51 51 51 51 2 2 2 2



Sizing + Fit



ROAD/CX/ASPHALT

HEIGHT/INCHES HEIGHT/METRIC INSEAM/INCHES INSEAM/METRIC
4’10”-5’1″ 147-155 cm 24”-27” 61-69 cm
5’0″-5’3″ 152-160 cm 26″-29″ 66-74 cm
5’2″-5’7″ 157-170 cm 27″-30″ 69-76 cm
5’6″-5’10” 168-178 cm 29″-31″ 74-79 cm
5’9″-6’0″ 175-183 cm 30″-33″ 76-84 cm
5’11”-6’2″ 180-188 cm 32″-35″ 81-89 cm
6’1″-6’5″ 185-196 cm 33″-36″ 84-91 cm



ROAD/ROVE LIBRE CX/SUTRA DEWS COCO
46-48 cm 46 cm 46-48 cm N/A XS
48-50 cm 46-49 cm 48-50 cm Small Small
48-52 cm 49-51 cm 48-52 cm Small, Medium Small, Medium
52-54 cm 51-54 cm 52-54 cm Medium Medium
52-56 cm 54-55 cm 52-56 cm Medium, Large Medium, Large
54-58 cm 54-55 cm 54-58 cm Large, XL Large
56-58 cm 55 cm 56-58 cm XL N/A





MTB/ALL MOUNTAIN/GRAVITY

HEIGHT/INCHES HEIGHT/METRIC INSEAM/INCHES INSEAM/METRIC
4’10”-5’1″ 147-155 cm 24”-27” 61-69 cm
5’0″-5’3″ 152-160 cm 26″-29″ 66-74 cm
5’2″-5’7″ 157-170 cm 27″-30″ 69-76 cm
5’6″-5’10” 168-178 cm 29″-31″ 74-79 cm
5’9″-6’0″ 175-183 cm 30″-33″ 76-84 cm
5’11”-6’2″ 180-188 cm 32″-35″ 81-89 cm
6’1″-6’5″ 185-196 cm 33″-36″ 84-91 cm



SPLICE MTB/XC TRAIL/FAT ALL MOUNTAIN/ENDURO GRAVITY/DH
Small XS XS N/A
Small Small Small N/A
Small, Medium Small, Medium Small, Medium Medium
Medium Medium Medium Medium
Medium, Large Medium, Large Medium, Large Medium, Large
Large, XL Large, XL Large, XL Large, XL
Large, XL Large, XL Large, XL Large, XL





KONA CROMOLY

Very few materials offer as much shock absorption, durability and supple-ride characteristics as steel. We’ve never strayed from cycling’s original material and have worked tirelessly to adapt, refine and innovate Kona Cromoly framesets as rider demands continue to evolve.



INTERNAL HEADSET

Bearing cups are actually pressed into the frame and are easily removable. An internal headset also reduces stack height, so the height of the stem and bars are more adjustable, giving the rider the best fit possible.



TAPERED HEAD TUBE

More girth at the bottom of the head tube better distributes shock force, prolonging the bearing life of the headset itself and eliminating brake shudder, while providing confident steering performance. The inherent strength of its triangular design also means a stronger steering position and improved balance, giving the rider more control in rough terrain. A zero-stack, tapered head tube also puts strength where the load is going—into the lower headset cup—maximizing bearing durability where it’s needed.



TUBELESS COMPATIBLE RIMS

Tubeless rims allow for tires with more puncture resistance; the ability to run lower tire pressure, which provides better tire grip on the trail; lower rolling resistance; and weight savings over traditional tube and tire systems.



12x148mm AXLE

12x142mm, 12×148 and 12×157 rear axle standards provide two major advantages to the Kona rider: the 12mm diameter of the rear axle provides the rear hub and frame with a stiff interface, while the 142/148/157mm outer diameter of the hub allows the wheel to be quickly and properly positioned in the frame before the rear axle is inserted. For 2017, you’ll see the 12×148 Boost standard in the mix. Boost spacing provides more tire clearance at the chainstay yoke, while the rear wheel is stiffer and more durable relative to a 12×142 thru-axle.



LIFETIME WARRANTY

Register a new Kona bike within three months of purchase, and the original owner qualifies the Kona frame for a free Lifetime Warranty. Note: this does not apply to Kona Carbon models.

ONE-YEAR LIMITED WARRANTY ON COMPLETE BICYCLE
Kona warrants to the original owner that this new Kona bicycle shall be free of defective materials and workmanship for a period of one year from the date of original purchase in the United States or Canada and operated under normal conditions and use. During this one-year period, Kona shall repair or replace, at its sole option, all parts that are found by Kona to be defective and subject to this limited warranty. The original owner shall pay all labor charges connected with the repair or replacement of all parts.

LIFETIME LIMITED WARRANTY ON BICYCLE FRAME
When warranty on non-carbon Kona bikes and frames is NOT registered within three months of purchase, Kona warrants to the original owner that the frame of this new Kona bicycle purchased from an authorized Kona dealer shall be free of defective materials or workmanship for a three-year period. IF THE WARRANTY IS REGISTERED WITH KONA WITHIN THREE MONTHS AFTER THE PURCHASE OF THE BICYCLE, THE WARRANTY IS EXTENDED FOR THE LIFETIME OF THE ORIGINAL OWNER, with the exception of carbon bikes and frames. During warranty period, Kona shall repair or replace, at its sole option, the bicycle frame if Kona determines the frame is defective and subject to this limited warranty. The original owner shall pay all labor and shipping charges connected with the repair or replacement of the bicycle frame. Please see the Kona owner’s manual, provided with your bicycle, for additional information.

Note: this Limited Lifetime Warranty applies to purchases from Kona U.S.A., Kona Canada and Kona Europe.
