Kona Jake The Snake

The working man’s privateer steed, the Jake the Snake is the go-to bike for Cyclocross racers and hard-core commuters alike. The legendary Jake the Snake features race-driven geometry in a tough yet light aluminum frame and a full carbon flat mount disc fork, and is accompanied by tubeless ready wheels wrapped with Maxxis All Terrane tires, a SRAM Apex 1×11 drivetrain, and TRP hydraulic disc brakes.

COLOR:                Gloss Charcoal, Gray & Chalk w/ Charcoal

$1,899.00

Kona Bikes Jake The Snake Side View Venice Century City
Kona Bikes Jake The Snake Side View Venice Mar Vista
Kona Bikes Jake The Snake Crankset Venice West La

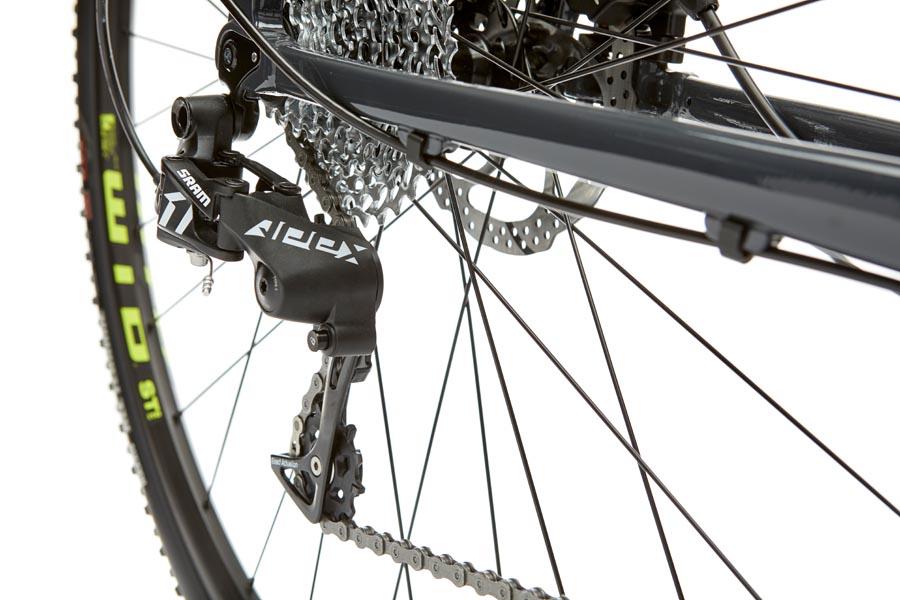

Kona Bikes Jake The Snake Rear Derailleur Venice Culver City
Kona Bikes Jake The Snake Pipe Venice Venice
Kona Bikes Jake The Snake Tire Culver City Los Angeles
Kona Bikes Jake The Snake Fork Culver City Century City
Kona Bikes Jake The Snake Front Side Culver City Mar Vista
Kona Bikes Jake The Snake Wires Culver City West La
Kona Bikes Jake The Snake Brake Culver City Venice
Kona Bikes Jake The Snake Gear Culver City Culver City
Kona Bikes Jake The Snake Tire West La Los Angeles

Why Buy at a Local Bike Bike?

Free Adjustments for Life

Any bike you buy from Bike Shop California or Bike Shop Santa Monica comes with free adjustments for life from the orginal owner.

v

Real Expert Bike Advice

We could probably make more money doing something else…but we are passionate about bikes. That means are up to date on the current trends and bikes as well as what is coming next.

Support Local Business

We are a local business creating real jobs in the community and supporting the idea of pollution free mobility. Money purchased at local businesses go directly back to supporting local economies.

Kona Jake The Snake Product Details

Specifications



Frame Material: Kona Race Light 6061 Aluminum Butted frame

Fork: Kona Full Carbon Flat mount CX Race Disc

Wheels: WTB ST i19 TCS 700c

Crankset: FSA Gossamer Compact 1x MegaExo

Drivetrain: SRAM Apex 11spd

Brakes: SRAM Apex w/ TRP HY/RD C 160mm front / 160mm rear rotor

Seat Post: Kona Thumb w/Offset

Cockpit: Kona Road Bar/stem

Front Tire: Maxxis All Terrane EXO TR DUAL 700x33c

Rear Tire: Maxxis All Terrane EXO TR DUAL 700x33c

Saddle: WTB Volt Sport



FRAME MATERIAL Kona Race Light 6061 Aluminum Butted
SIZES 48, 50, 52, 54, 56, 58
REAR SHOCK n/a
FORK Kona Carbon Cross
CRANKARMS FSA Gossamer Compact 1x MegaExo
CHAINRINGS 40t
B/B FSA 6200 68mm
PEDALS n/a
CHAIN SRAM PC1110
FREEWHEEL SRAM PG1130 11-32t 11spd
CHAINGUIDE n/a
F/D n/a
R/D SRAM Apex
SHIFTERS SRAM Apex
BRAKE CALIPERS TRP HY/RD C
FRONT BRAKE ROTOR TRP 160mm
REAR BRAKE ROTOR TRP 160mm
BRAKE LEVERS SRAM Apex
HEADSET FSA No.57B
HANDLEBAR Kona Road
STEM Kona Road
SEATPOST Kona Thumb w/Offset 31.6mm
SEAT CLAMP Kona Clamp
GRIPS Kona Cork Tape
SADDLE WTB Volt Sport
FRONT HUB Formula 100x12mm
REAR HUB Formula 142x12mm
SPOKES Stainless Black 14g
RIMS WTB ST i19 TCS
FRONT TIRE Maxxis All Terrane EXO TR DUAL 700x33c
REAR TIRE Maxxis All Terrane EXO TR DUAL 700x33c
PAINT COLOR Gloss Charcoal, Gray & Chalk w/ Charcoal & Slime Decals
EXTRAS n/a

*All specifications are subject to change without notice



Geometry



Kona Bikes Jake The Snake Geometry Venice Los Angeles



                                mm                             inches
SIZE
 48 50 52 54 56 58 48 50 52 54 56 58
1 ST LENGTH 480 500 520 540 560 580 18.9 19.7 20.5 21.3 22 22.8
2 TT LENGTH 516 531 546 562 578 596 20.3 20.9 21.5 22.1 22.8 23.5
3 REACH 375 380 385 390 395 400 14.8 15 15.2 15.4 15.6 15.7
4 STACK 525 545 560 580 600 620 20.7 21.5 22 22.8 23.6 24.4
5 STANDOVER 747 764 787 802 822 840 29.4 30.1 31 31.6 32.4 33.1
6 HT ANGLE 70 70 70.5 70.5 71 71 70 70 70.5 70.5 71 71
7 HT LENGTH 100.6 121.8 137.9 159.1 180.2 201.4 4 4.8 5.4 6.3 7.1 7.9
8 ST ANGLE 75 74.5 74 73.5 73 72.5 75 74.5 74 73.5 73 72.5
9 CS LENGTH 425 425 425 425 425 425 16.7 16.7 16.7 16.7 16.7 16.7
10 BB DROP 72 72 70 70 68 68 2.8 2.8 2.8 2.8 2.7 2.7
11 BB HEIGHT 280 280 282 282 284 284 11 11 11.1 11.1 11.2 11.2
12 WHEELBASE 1007 1019 1026 1038 1045 1057 39.6 40.1 40.4 40.9 41.1 41.6
13 FRONT CENTER 592 604 610 622 630 641 23.3 23.8 24 24.5 24.8 25.2
14 FORK LENGTH 395 395 395 395 395 395 15.6 15.6 15.6 15.6 15.6 15.6
15 FORK OFFSET 45 45 45 45 45 45

 1.8 1.8 1.8 1.8 1.8 1.8





Sizing + Fit



ROAD/CX/ASPHALT

HEIGHT/INCHES HEIGHT/METRIC INSEAM/INCHES INSEAM/METRIC
4’10”-5’1″ 147-155 cm 24”-27” 61-69 cm
5’0″-5’3″ 152-160 cm 26″-29″ 66-74 cm
5’2″-5’7″ 157-170 cm 27″-30″ 69-76 cm
5’6″-5’10” 168-178 cm 29″-31″ 74-79 cm
5’9″-6’0″ 175-183 cm 30″-33″ 76-84 cm
5’11”-6’2″ 180-188 cm 32″-35″ 81-89 cm
6’1″-6’5″ 185-196 cm 33″-36″ 84-91 cm



ROAD/ROVE LIBRE CX/SUTRA DEWS COCO
46-48 cm 46 cm 46-48 cm N/A XS
48-50 cm 46-49 cm 48-50 cm Small Small
48-52 cm 49-51 cm 48-52 cm Small, Medium Small, Medium
52-54 cm 51-54 cm 52-54 cm Medium Medium
52-56 cm 54-55 cm 52-56 cm Medium, Large Medium, Large
54-58 cm 54-55 cm 54-58 cm Large, XL Large
56-58 cm 55 cm 56-58 cm XL N/A





MTB/ALL MOUNTAIN/GRAVITY

HEIGHT/INCHES HEIGHT/METRIC INSEAM/INCHES INSEAM/METRIC
4’10”-5’1″ 147-155 cm 24”-27” 61-69 cm
5’0″-5’3″ 152-160 cm 26″-29″ 66-74 cm
5’2″-5’7″ 157-170 cm 27″-30″ 69-76 cm
5’6″-5’10” 168-178 cm 29″-31″ 74-79 cm
5’9″-6’0″ 175-183 cm 30″-33″ 76-84 cm
5’11”-6’2″ 180-188 cm 32″-35″ 81-89 cm
6’1″-6’5″ 185-196 cm 33″-36″ 84-91 cm



SPLICE MTB/XC TRAIL/FAT ALL MOUNTAIN/ENDURO GRAVITY/DH
Small XS XS N/A
Small Small Small N/A
Small, Medium Small, Medium Small, Medium Medium
Medium Medium Medium Medium
Medium, Large Medium, Large Medium, Large Medium, Large
Large, XL Large, XL Large, XL Large, XL
Large, XL Large, XL Large, XL Large, XL





KONA RACE LIGHT 6061 ALUMINUM

Kona Race Light 7005 and 6061 are lighter, more performance-oriented fabrications of our 7005/6061 tubing. Designed to meet Kona’s discerning race specifications, Race Light 7005/6061 are custom butted to create thicker tubes at weld areas and important parts of the frame, providing incredible strength and torsional integrity to the feel of the ride. We remove wall thickness in other parts of the frameset to lighten up the bike, giving the perfect balance between quickness and stiffness.



INTERNAL HEADSET

Bearing cups are actually pressed into the frame and are easily removable. An internal headset also reduces stack height, so the height of the stem and bars are more adjustable, giving the rider the best fit possible.



TAPERED HEAD TUBE

More girth at the bottom of the head tube better distributes shock force, prolonging the bearing life of the headset itself and eliminating brake shudder, while providing confident steering performance. The inherent strength of its triangular design also means a stronger steering position and improved balance, giving the rider more control in rough terrain. A zero-stack, tapered head tube also puts strength where the load is going—into the lower headset cup—maximizing bearing durability where it’s needed.



TUBELESS COMPATIBLE RIMS

Tubeless rims allow for tires with more puncture resistance; the ability to run lower tire pressure, which provides better tire grip on the trail; lower rolling resistance; and weight savings over traditional tube and tire systems.



12x142mm AXLE

12x142mm, 12×148 and 12×157 rear axle standards provide two major advantages to the Kona rider: the 12mm diameter of the rear axle provides the rear hub and frame with a stiff interface, while the 142/148/157mm outer diameter of the hub allows the wheel to be quickly and properly positioned in the frame before the rear axle is inserted. For 2017, you’ll see the 12×148 Boost standard in the mix. Boost spacing provides more tire clearance at the chainstay yoke, while the rear wheel is stiffer and more durable relative to a 12×142 thru-axle.



LIFETIME WARRANTY

Register a new Kona bike within three months of purchase, and the original owner qualifies the Kona frame for a free Lifetime Warranty. Note: this does not apply to Kona Carbon models.

ONE-YEAR LIMITED WARRANTY ON COMPLETE BICYCLE
Kona warrants to the original owner that this new Kona bicycle shall be free of defective materials and workmanship for a period of one year from the date of original purchase in the United States or Canada and operated under normal conditions and use. During this one-year period, Kona shall repair or replace, at its sole option, all parts that are found by Kona to be defective and subject to this limited warranty. The original owner shall pay all labor charges connected with the repair or replacement of all parts.

LIFETIME LIMITED WARRANTY ON BICYCLE FRAME
When warranty on non-carbon Kona bikes and frames is NOT registered within three months of purchase, Kona warrants to the original owner that the frame of this new Kona bicycle purchased from an authorized Kona dealer shall be free of defective materials or workmanship for a three-year period. IF THE WARRANTY IS REGISTERED WITH KONA WITHIN THREE MONTHS AFTER THE PURCHASE OF THE BICYCLE, THE WARRANTY IS EXTENDED FOR THE LIFETIME OF THE ORIGINAL OWNER, with the exception of carbon bikes and frames. During warranty period, Kona shall repair or replace, at its sole option, the bicycle frame if Kona determines the frame is defective and subject to this limited warranty. The original owner shall pay all labor and shipping charges connected with the repair or replacement of the bicycle frame. Please see the Kona owner’s manual, provided with your bicycle, for additional information.

Note: this Limited Lifetime Warranty applies to purchases from Kona U.S.A., Kona Canada and Kona Europe.
