Kona Operator Cr

We had one goal with the Operator CR: go as fast as possible. We put the Operator CR to the test with Connor Fearon all last season and the results did not disappoint. With two positions offering 15mm of rear wheel adjustments and 10mm of reach adjustment it’s easier to control the feel of the bike to get the ride you want. While we spec the bike as a 29er, you are able to run 27.5” wheels as well. Shorter or longer, 29” or 27.5”, you have the power to customize your ride. Front and rear RockShox suspension, powerful SRAM Code brakes, and Maxxis Assegai 3C tires round out this innovative and wickedly fast race machine.

COLOR:                Gloss Sunset Orange & Indigo, Peach & Black Decals

$4,999.00

Kona Bikes Operator Cr Side View Venice Los Angeles
Kona Bikes Operator Cr Side View Venice Century City
Kona Bikes Operator Cr Crankset Venice Los Angeles
Kona Bikes Operator Cr Rear Derailleur Venice Los Angeles

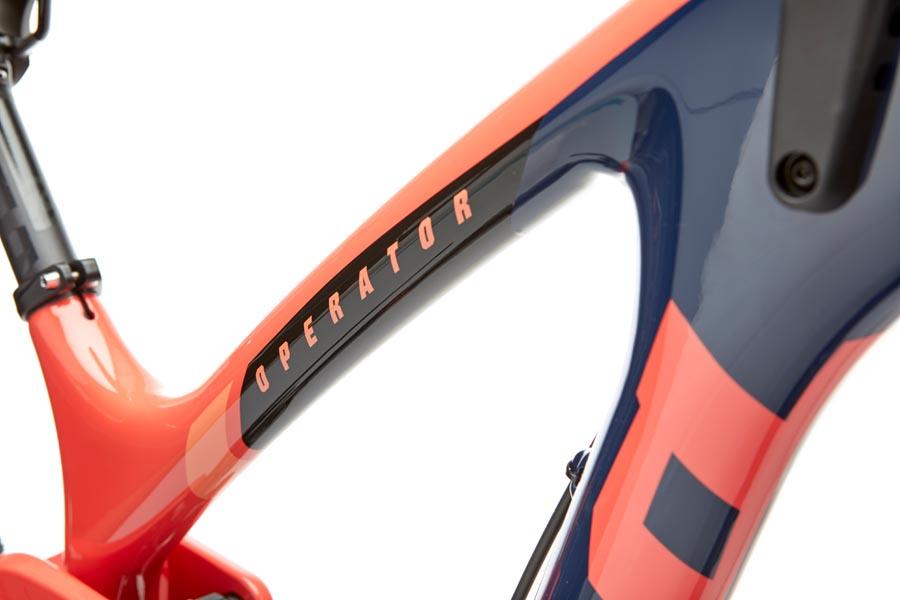

Kona Bikes Operator Cr Pipe Venice Century City
Kona Bikes Operator Cr Pump Venice Century City
Kona Bikes Operator Cr Tire Venice Los Angeles

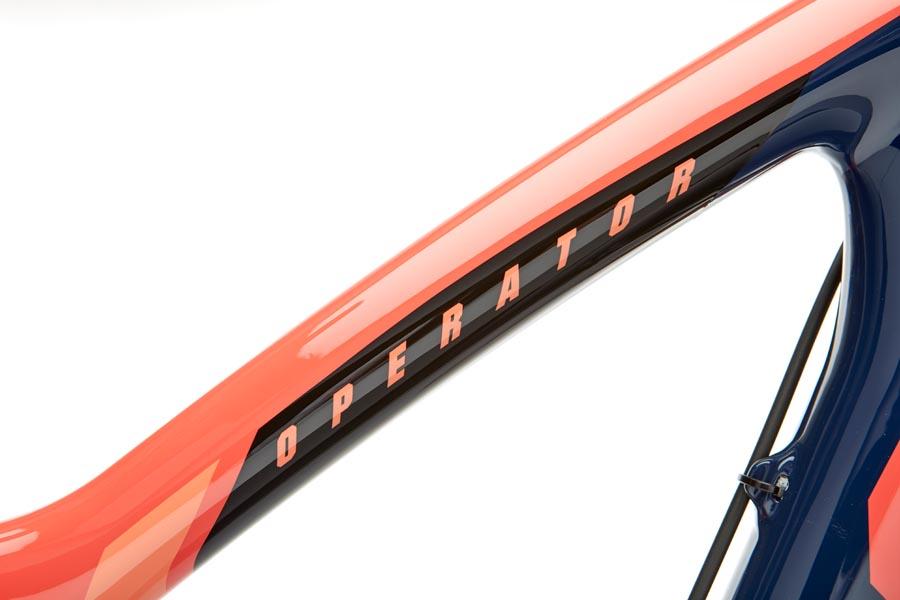

Kona Bikes Operator Cr Pipe Venice Mar Vista

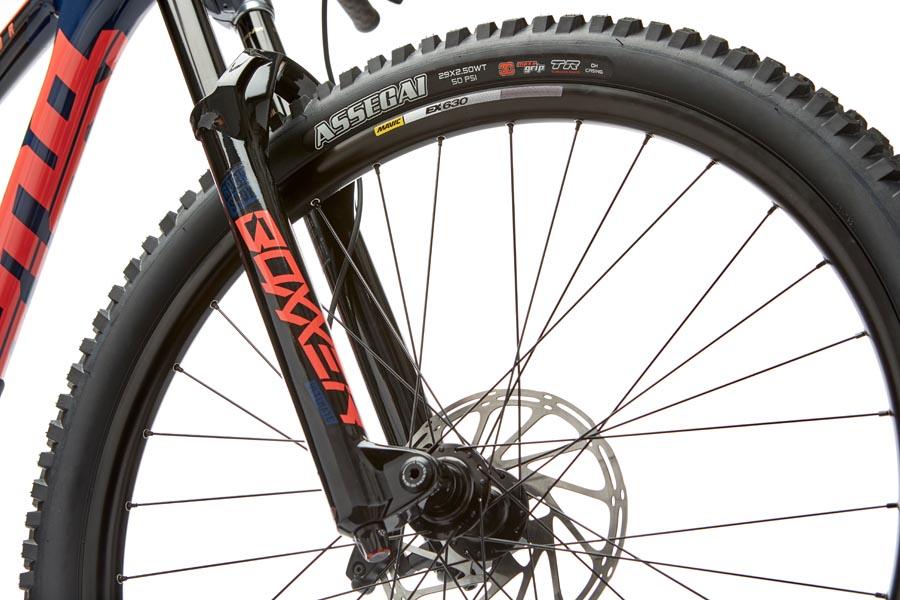

Kona Bikes Operator Cr Tire Venice Mar Vista
Kona Bikes Operator Cr Front View Venice Mar Vista

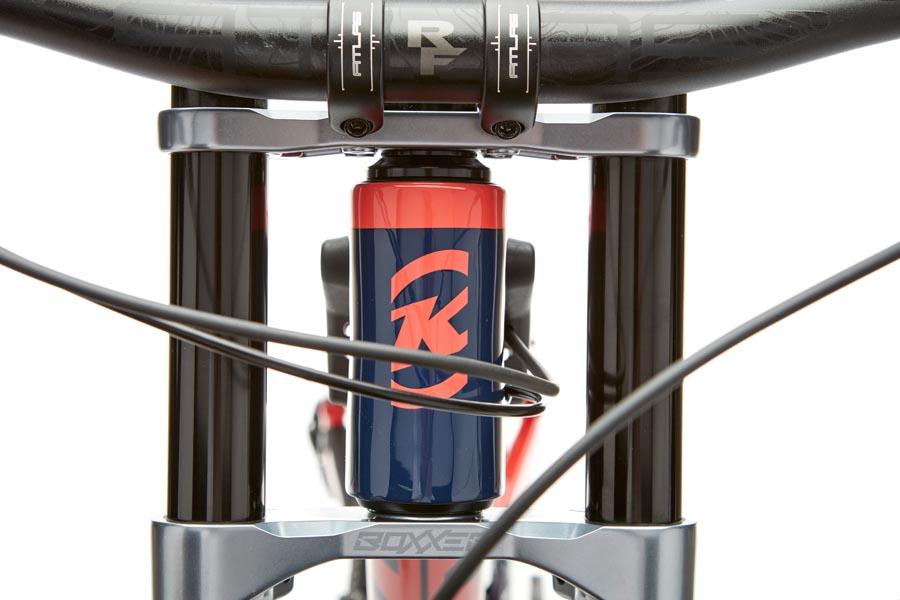

Kona Bikes Operator Cr Handlebar Venice Mar Vista
Kona Bikes Operator Cr Cover Venice West La

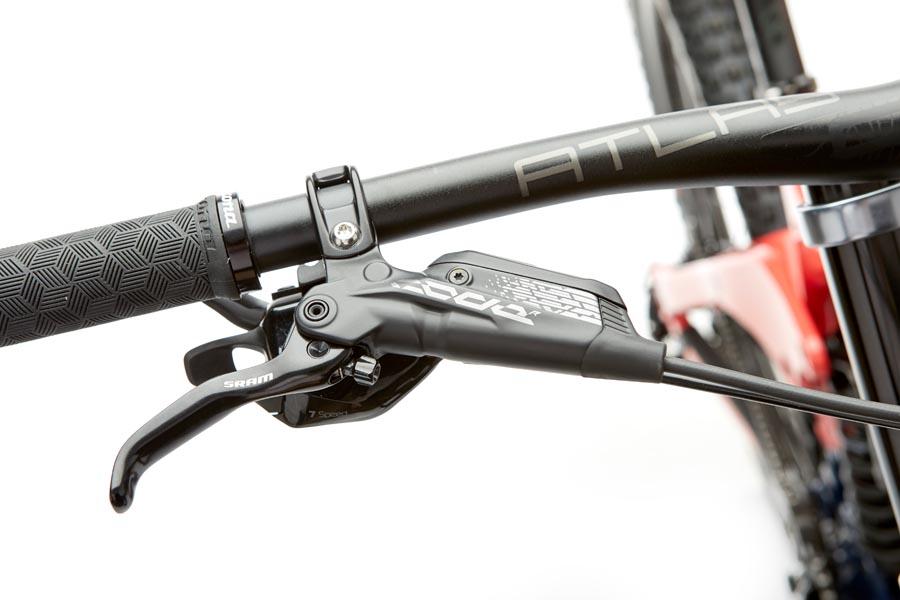

Kona Bikes Operator Cr Brake Venice West La
Kona Bikes Operator Cr Pedal Venice West La
Kona Bikes Operator Cr Cassette Venice West La

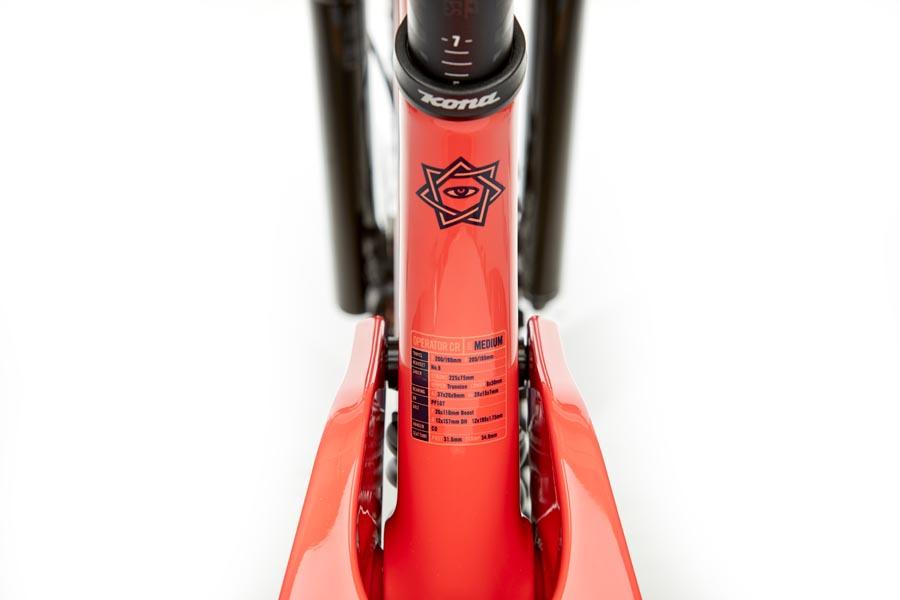

Kona Bikes Operator Cr Fork Venice Culver City

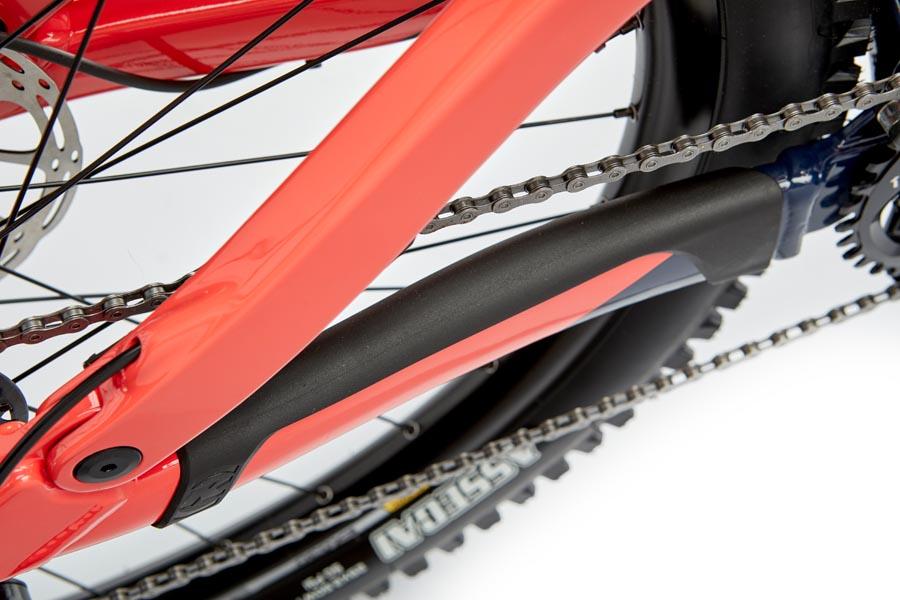

Kona Bikes Operator Cr Chain Venice West La

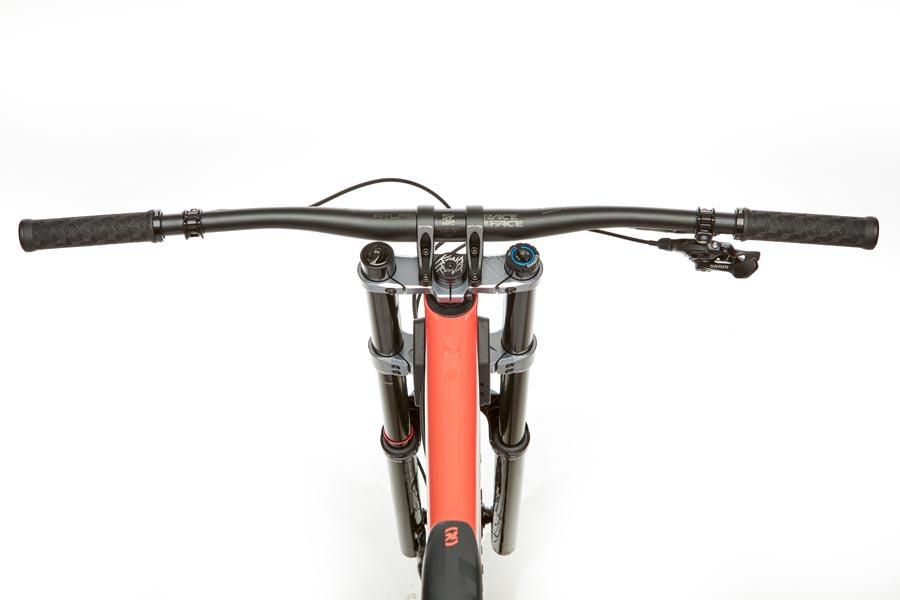

Kona Bikes Operator Cr Handlebar Venice Culver City
Kona Bikes Operator Cr Handle Venice Culver City

Why Buy at a Local Bike Bike?

Free Adjustments for Life

Any bike you buy from Bike Shop California or Bike Shop Santa Monica comes with free adjustments for life from the orginal owner.

v

Real Expert Bike Advice

We could probably make more money doing something else…but we are passionate about bikes. That means are up to date on the current trends and bikes as well as what is coming next.

Support Local Business

We are a local business creating real jobs in the community and supporting the idea of pollution free mobility. Money purchased at local businesses go directly back to supporting local economies.

Kona Operator Cr Product Details

Specifications



Frame Material: Kona DH Carbon w/ 6061 Aluminum Chainstays

Wheels: Mavic ex 630 rims

Suspension Platform: Beamer

Front/Rear Suspension: (190mm/195mm 29”) (200/205 27.5”)

Rear Shock: RockShox Super Deluxe Coil Ultimate

Fork: Rock Shox Boxxer Ultimate DebonAir 190mm

Crankset: SRAM Descendant DH cranks w/MRP SXg CS Guide

Drivetrain: SRAM GX DH 7spd

Brakes: SRAM Code R brakes with 200mm front / 200mm rear rotor

Seat Post: Kona OB

Cockpit: Raceface Atlas Bar 35mm Bar and DM Stem

Front Tire: Maxxis Assegai DH TR 3C 29×2.5″

Rear Tire: Maxxis Assegai DH TR 3C 29×2.5″

Saddle: WTB High Tail Trail Pro



FRAME MATERIAL Kona DH Carbon w/ 6061 Aluminum Chain Stays 195mm Travel (205mm in 27.5)
SIZES M, L
REAR SHOCK RockShox Super Deluxe Coil Ultimate Trunnion
FORK RockShox Boxxer Ultimate DebonAir 190mm
CRANKARMS SRAM Descendant DH
CHAINRINGS 36t
B/B SRAM GXP PF
PEDALS n/a
CHAIN SRAM PC1110
FREEWHEEL SRAM PG720 11-25t 7spd
CHAINGUIDE MRP SXg
F/D n/a
R/D SRAM GX DH
SHIFTERS SRAM GX DH
BRAKE CALIPERS SRAM Code R
FRONT BRAKE ROTOR SRAM Centerline 200mm
REAR BRAKE ROTOR SRAM Centerline 200mm
BRAKE LEVERS SRAM Code R
HEADSET FSA Orbit C No.8 ACB
HANDLEBAR RaceFace Atlas 35mm
STEM RaceFace Atlas DM 35mm
SEATPOST Kona OB 31.6mm
SEAT CLAMP Kona Clamp
GRIPS Kona Key Grip
SADDLE WTB High Tail Trail Pro
FRONT HUB Formula 110x20mm
REAR HUB Formula 157x12mm
SPOKES Stainless Black 14g
RIMS Mavic EX630
FRONT TIRE Maxxis Assegai DH TR 3C 29×2.5″
REAR TIRE Maxxis Assegai DH TR 3C 29×2.5″
PAINT COLOR Gloss Sunset Orange & Indigo w/ Sunset Orange, Peach & Black Decals
EXTRAS n/a

*All specifications are subject to change without notice



Geometry



Kona Bikes Operator Cr Geometry Venice Los Angeles



SIZE                     M                 L               M               L
ADJ REACH 0 +10 0 +10 0 +10 0 +10
1 ST LENGTH                    440                  440             17.3             17.3
2 TT LENGTH 548 560 576 588 21.6 22 22.7 23.1
3 REACH 435 445 460 470 17.1 17.5 18.1 18.5
4 STACK 613 618 618 623 24.1 24.3 24.3 24.5
5 STANDOVER 758 760 755 757 29.8 29.9 29.7 29.8
6 HT ANGLE                     62                    62                62                 62
7 HT LENGTH                    117                   122                4.6                4.8
8 ST ANGLE                    79.5                   79.5               79.5                79.5
9 CS LENGTH                  425 [440]                425 [440]            425 [440]             425 [440]
10 BB DROP 20 22 20 22 0.8 0.9 0.8 0.9
11 BB HEIGHT 355 353 355 353 14 13.9 14 13.9
12 WHEELBASE 1233 [1248] 1241 [1256] 1260 [1275] 1269 [1284] 48.5 [49.1] 48.9 [49.4] 49.6 [50.2] 50.0 [50.6]
13 FRONT CENTER 806 815 833 842 31.7 32.1 32.8 33.1
14 FORK LENGTH                    591                   591              23.3                23.3
15 FORK OFFSET                    56                     56               2.2                2.2



Sizing + Fit



ROAD/CX/ASPHALT

HEIGHT/INCHES HEIGHT/METRIC INSEAM/INCHES INSEAM/METRIC
4’10”-5’1″ 147-155 cm 24”-27” 61-69 cm
5’0″-5’3″ 152-160 cm 26″-29″ 66-74 cm
5’2″-5’7″ 157-170 cm 27″-30″ 69-76 cm
5’6″-5’10” 168-178 cm 29″-31″ 74-79 cm
5’9″-6’0″ 175-183 cm 30″-33″ 76-84 cm
5’11”-6’2″ 180-188 cm 32″-35″ 81-89 cm
6’1″-6’5″ 185-196 cm 33″-36″ 84-91 cm



ROAD/ROVE LIBRE CX/SUTRA DEWS COCO
46-48 cm 46 cm 46-48 cm N/A XS
48-50 cm 46-49 cm 48-50 cm Small Small
48-52 cm 49-51 cm 48-52 cm Small, Medium Small, Medium
52-54 cm 51-54 cm 52-54 cm Medium Medium
52-56 cm 54-55 cm 52-56 cm Medium, Large Medium, Large
54-58 cm 54-55 cm 54-58 cm Large, XL Large
56-58 cm 55 cm 56-58 cm XL N/A





MTB/ALL MOUNTAIN/GRAVITY

HEIGHT/INCHES HEIGHT/METRIC INSEAM/INCHES INSEAM/METRIC
4’10”-5’1″ 147-155 cm 24”-27” 61-69 cm
5’0″-5’3″ 152-160 cm 26″-29″ 66-74 cm
5’2″-5’7″ 157-170 cm 27″-30″ 69-76 cm
5’6″-5’10” 168-178 cm 29″-31″ 74-79 cm
5’9″-6’0″ 175-183 cm 30″-33″ 76-84 cm
5’11”-6’2″ 180-188 cm 32″-35″ 81-89 cm
6’1″-6’5″ 185-196 cm 33″-36″ 84-91 cm



SPLICE MTB/XC TRAIL/FAT ALL MOUNTAIN/ENDURO GRAVITY/DH
Small XS XS N/A
Small Small Small N/A
Small, Medium Small, Medium Small, Medium Medium
Medium Medium Medium Medium
Medium, Large Medium, Large Medium, Large Medium, Large
Large, XL Large, XL Large, XL Large, XL
Large, XL Large, XL Large, XL Large, XL



KONA CARBON

Designed to be lightweight and built to demanding standards. Carbon fiber has long been praised for its weight and strength, but rather than chase grams, we place our efforts on the performance that is possible when the right high-modulus fibers are in the right places. Our designers work very closely with our manufacturer to ensure there is no compromise to the desired ride characteristics, durability and – finally – weight stipulations that we expect from our bikes.



INTEGRATED HEADSET

Integrated headsets are simple, light and effective headset systems whereby the bearing race cups are actually part of the head tube, and they are either machined away and left with the head tube, bonded (carbon), or welded in with steel or alloy. Like an internal headset, an integrated headset also reduces stack height, so the height of the stem and bars are more adjustable, giving the rider the best fit possible.



TUBELESS COMPATIBLE RIMS

Tubeless rims allow for tires with more puncture resistance; the ability to run lower tire pressure, which provides better tire grip on the trail; lower rolling resistance; and weight savings over traditional tube and tire systems.



12x157mm AXLE

12x142mm, 12×148 and 12×157 rear axle standards provide two major advantages to the Kona rider: the 12mm diameter of the rear axle provides the rear hub and frame with a stiff interface, while the 142/148/157mm outer diameter of the hub allows the wheel to be quickly and properly positioned in the frame before the rear axle is inserted. For 2017, you’ll see the 12×148 Boost standard in the mix. Boost spacing provides more tire clearance at the chainstay yoke, while the rear wheel is stiffer and more durable relative to a 12×142 thru-axle.



BEAMER INDEPENDENT SUSPENSION

Built to be off-the-top progressive, Beamer Independent Suspension helps the bike to stay higher in the travel and recover from hits more quickly. The Operators are instilled with what our product managers like to call “pure shock movement,” whereby the shock is protected from side load. Designed to be highly tuneable and extremely durable, the Beamer IS is our version of greased lightning.
