Kona Operator
The Operator is a familiar face in both the bike park and downhill racing scene. With the RockShox Boxxer RC fork and a 200mm RockShox Super Deluxe coil trunnion shock, the ride is plush and ready for big hits. With a SRAM drivetrain and brakes, and Maxxis tires, the Operator is a proven staple in the downhill world.
COLOR: on, Seafoam & Dark Seafoam Decals
$3,699.00
Why Buy at a Local Bike Bike?
Free Adjustments for Life
Any bike you buy from Bike Shop California or Bike Shop Santa Monica comes with free adjustments for life from the orginal owner.
Real Expert Bike Advice
We could probably make more money doing something else…but we are passionate about bikes. That means are up to date on the current trends and bikes as well as what is coming next.
Support Local Business
We are a local business creating real jobs in the community and supporting the idea of pollution free mobility. Money purchased at local businesses go directly back to supporting local economies.
Kona Operator Product Details
Specifications
Frame Material: Kona DH 6061 Aluminum Butted frame
Wheels: Sun MTX 33 27.5”
Suspension Platform: Beamer
Front/Rear Suspension: 200mm/200mm

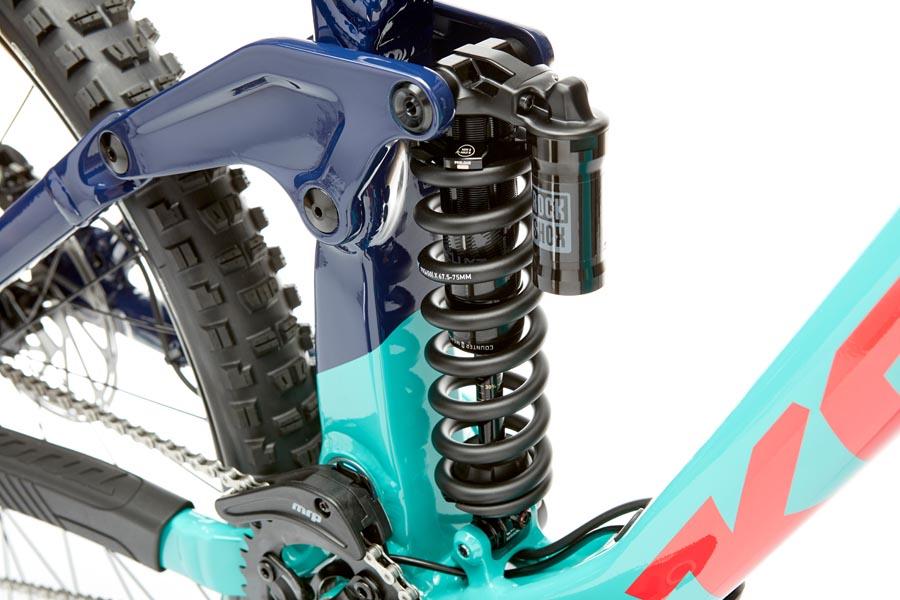

Rear Shock: RockShox Super Deluxe Coil Select
Fork: RockShox Boxxer Select DebonAir 200mm
Crankset: RaceFace Chester w/ MRP Chain Guide
Drivetrain: SRAM X7/X5 9spd
Brakes: SRAM Guide T 4-piston brakes with 200mm / 200mm rear rotor
Seat Post: Kona OB
Cockpit: RaceFace 35mm Chester Bar and DM stem with Kona Key Grip
Front Tire: Maxxis Minion DHF DH casing 27.5x 2.5”
Rear Tire: Maxxis Minion DHR 2 DH casing 27.5x 2.4”
Saddle: Kona DH
| FRAME MATERIAL | Kona DH 6061 Aluminum Butted 200mm Travel |
| SIZES | M, L, XL |
| REAR SHOCK | RockShox Super Deluxe Coil Select Trunnion |
| FORK | RockShox Boxxer Select DebonAir 200mm |
| CRANKARMS | RaceFace Chester |
| CHAINRINGS | 36t |
| B/B | Shimano PF107 |
| PEDALS | n/a |
| CHAIN | KMC X9 |
| FREEWHEEL | SRAM PG950 11-28t 9spd |
| CHAINGUIDE | MRP G3 Steel |
| F/D | n/a |

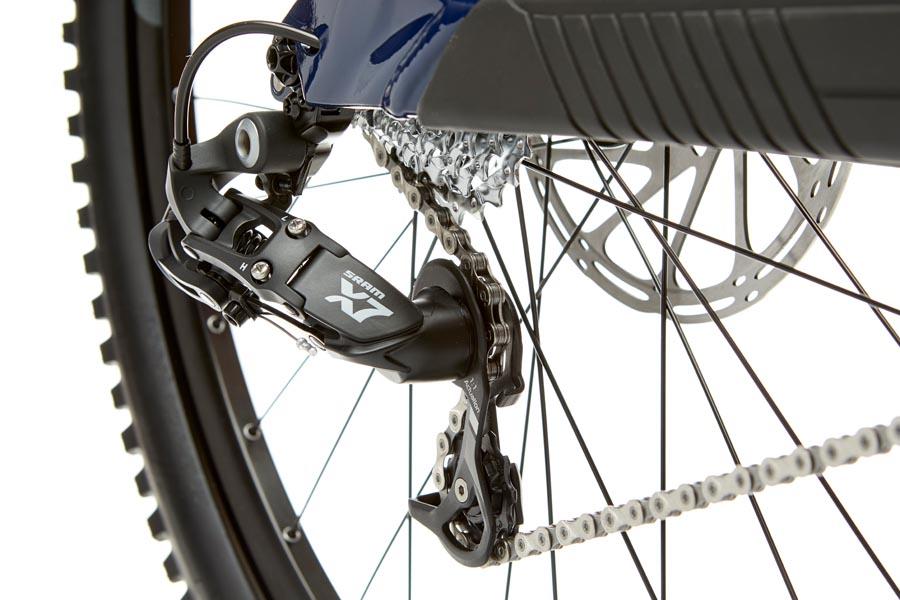

| R/D | SRAM X7 Short Cage |
| SHIFTERS | SRAM X5 |
| BRAKE CALIPERS | SRAM Guide T |
| FRONT BRAKE ROTOR | SRAM Centerline 200mm |
| REAR BRAKE ROTOR | SRAM Centerline 200mm |

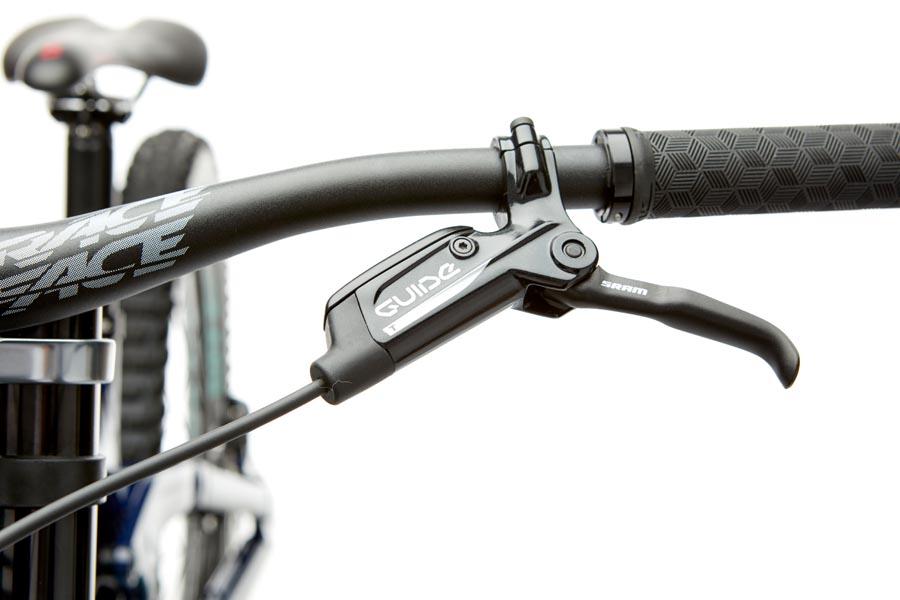

| BRAKE LEVERS | SRAM Guide T |
| HEADSET | FSA No.57B |
| HANDLEBAR | RaceFace Chester 35mm |
| STEM | RaceFace Chester DM 35mm |
| SEATPOST | Kona OB 34.9mm |
| SEAT CLAMP | Kona Clamp |
| GRIPS | Kona Key Grip |
| SADDLE | Kona DH |
| FRONT HUB | Formula 110x20mm |
| REAR HUB | Formula 157x12mm |
| SPOKES | Stainless Black 14g |
| RIMS | Sun Ringle MTX 33 Sleeved |
| FRONT TIRE | Maxxis Minion DHF DH 27.5×2.5″ |
| REAR TIRE | Maxxis Minion DHR II DH 27.5×2.4″ |
| PAINT COLOR | on, Seafoam & Dark Seafoam Decals |
| EXTRAS | n/a |
*All specifications are subject to change without notice
Geometry
| mm | inches | ||||||
| SIZE | M | L | XL | M | L | XL | |
| 1 | ST LENGTH | 410 | 410 | 410 | 16.1 | 16.1 | 16.1 |
| 2 | TT LENGTH | 584 | 611 | 641 | 23 | 24.1 | 25.2 |
| 3 | REACH | 435 | 460 | 485 | 17.1 | 18.1 | 19.1 |
| 4 | STACK | 615 | 620 | 629 | 24.2 | 24.4 | 24.8 |
| 5 | STANDOVER | 720 | 720 | 720 | 28.3 | 28.3 | 28.3 |
| 6 | HT ANGLE | 63 | 63 | 63 | 63 | 63 | 63 |
| 7 | HT LENGTH | 120 | 125 | 135 | 4.7 | 4.9 | 5.3 |
| 8 | ST ANGLE | 76.5 | 76.5 | 76 | 76.5 | 76.5 | 76 |
| 9 | CS LENGTH | 423 | 423 | 423 | 16.7 | 16.7 | 16.7 |
| 10 | BB DROP | 10 | 10 | 10 | 0.4 | 0.4 | 0.4 |
| 11 | BB HEIGHT | 349 | 349 | 349 | 13.7 | 13.7 | 13.7 |
| 12 | WHEELBASE | 1220 | 1248 | 1277 | 48 | 49.1 | 50.3 |
| 13 | FRONT CENTER | 797 | 825 | 855 | 31.4 | 32.5 | 33.7 |
| 14 | FORK LENGTH | 581 | 581 | 581 | 22.9 | 22.9 | 22.9 |
| 15 | FORK OFFSET | 46 | 46 | 46 | 1.9 | 1.9 | 1.9 |
Sizing + Fit
ROAD/CX/ASPHALT
| HEIGHT/INCHES | HEIGHT/METRIC | INSEAM/INCHES | INSEAM/METRIC |
|---|---|---|---|
| 4’10”-5’1″ | 147-155 cm | 24”-27” | 61-69 cm |
| 5’0″-5’3″ | 152-160 cm | 26″-29″ | 66-74 cm |
| 5’2″-5’7″ | 157-170 cm | 27″-30″ | 69-76 cm |
| 5’6″-5’10” | 168-178 cm | 29″-31″ | 74-79 cm |
| 5’9″-6’0″ | 175-183 cm | 30″-33″ | 76-84 cm |
| 5’11”-6’2″ | 180-188 cm | 32″-35″ | 81-89 cm |
| 6’1″-6’5″ | 185-196 cm | 33″-36″ | 84-91 cm |
| ROAD/ROVE | LIBRE | CX/SUTRA | DEWS | COCO |
|---|---|---|---|---|
| 46-48 cm | 46 cm | 46-48 cm | N/A | XS |
| 48-50 cm | 46-49 cm | 48-50 cm | Small | Small |
| 48-52 cm | 49-51 cm | 48-52 cm | Small, Medium | Small, Medium |
| 52-54 cm | 51-54 cm | 52-54 cm | Medium | Medium |
| 52-56 cm | 54-55 cm | 52-56 cm | Medium, Large | Medium, Large |
| 54-58 cm | 54-55 cm | 54-58 cm | Large, XL | Large |
| 56-58 cm | 55 cm | 56-58 cm | XL | N/A |
MTB/ALL MOUNTAIN/GRAVITY
| HEIGHT/INCHES | HEIGHT/METRIC | INSEAM/INCHES | INSEAM/METRIC |
|---|---|---|---|
| 4’10”-5’1″ | 147-155 cm | 24”-27” | 61-69 cm |
| 5’0″-5’3″ | 152-160 cm | 26″-29″ | 66-74 cm |
| 5’2″-5’7″ | 157-170 cm | 27″-30″ | 69-76 cm |
| 5’6″-5’10” | 168-178 cm | 29″-31″ | 74-79 cm |
| 5’9″-6’0″ | 175-183 cm | 30″-33″ | 76-84 cm |
| 5’11”-6’2″ | 180-188 cm | 32″-35″ | 81-89 cm |
| 6’1″-6’5″ | 185-196 cm | 33″-36″ | 84-91 cm |
| SPLICE | MTB/XC TRAIL/FAT | ALL MOUNTAIN/ENDURO | GRAVITY/DH |
|---|---|---|---|
| Small | XS | XS | N/A |
| Small | Small | Small | N/A |
| Small, Medium | Small, Medium | Small, Medium | Medium |
| Medium | Medium | Medium | Medium |
| Medium, Large | Medium, Large | Medium, Large | Medium, Large |
| Large, XL | Large, XL | Large, XL | Large, XL |
| Large, XL | Large, XL | Large, XL | Large, XL |
KONA 6061 ALUMINUM
Kona 7005 and 6061 Aluminum alloys are used extensively throughout our fleet of mountain and asphalt bicycles. A tough, durable, light alloy, both Kona 7005 and 6061 deliver fantastic, reliable performance that lasts for thousands of rides. Much of our 7005/6061 tubing is butted and/or formed, meaning the tubing’s wall thickness can be increased or decreased, as well as shaped, so we can fine-tune a particular frame’s strength and ride characteristics depending on its intended application.
INTERNAL HEADSET
Bearing cups are actually pressed into the frame and are easily removable. An internal headset also reduces stack height, so the height of the stem and bars are more adjustable, giving the rider the best fit possible.
TAPERED HEAD TUBE
More girth at the bottom of the head tube better distributes shock force, prolonging the bearing life of the headset itself and eliminating brake shudder, while providing confident steering performance. The inherent strength of its triangular design also means a stronger steering position and improved balance, giving the rider more control in rough terrain. A zero-stack, tapered head tube also puts strength where the load is going—into the lower headset cup—maximizing bearing durability where it’s needed.
12x157mm AXLE
12x142mm, 12×148 and 12×157 rear axle standards provide two major advantages to the Kona rider: the 12mm diameter of the rear axle provides the rear hub and frame with a stiff interface, while the 142/148/157mm outer diameter of the hub allows the wheel to be quickly and properly positioned in the frame before the rear axle is inserted. For 2017, you’ll see the 12×148 Boost standard in the mix. Boost spacing provides more tire clearance at the chainstay yoke, while the rear wheel is stiffer and more durable relative to a 12×142 thru-axle.
BEAMER INDEPENDENT SUSPENSION
Built to be off-the-top progressive, Beamer Independent Suspension helps the bike to stay higher in the travel and recover from hits more quickly. The Operators are instilled with what our product managers like to call “pure shock movement,” whereby the shock is protected from side load. Designed to be highly tuneable and extremely durable, the Beamer IS is our version of greased lightning.
27.5″ WHEELS
The benefits of the 27.5-inch wheel are simple: they roll over obstacles and track better than 26-inch wheels, but are more maneuverable and nimble than 29-inch ones.
LIFETIME WARRANTY
Register a new Kona bike within three months of purchase, and the original owner qualifies the Kona frame for a free Lifetime Warranty. Note: this does not apply to Kona Carbon models.
ONE-YEAR LIMITED WARRANTY ON COMPLETE BICYCLE
Kona warrants to the original owner that this new Kona bicycle shall be free of defective materials and workmanship for a period of one year from the date of original purchase in the United States or Canada and operated under normal conditions and use. During this one-year period, Kona shall repair or replace, at its sole option, all parts that are found by Kona to be defective and subject to this limited warranty. The original owner shall pay all labor charges connected with the repair or replacement of all parts.
LIFETIME LIMITED WARRANTY ON BICYCLE FRAME
When warranty on non-carbon Kona bikes and frames is NOT registered within three months of purchase, Kona warrants to the original owner that the frame of this new Kona bicycle purchased from an authorized Kona dealer shall be free of defective materials or workmanship for a three-year period. IF THE WARRANTY IS REGISTERED WITH KONA WITHIN THREE MONTHS AFTER THE PURCHASE OF THE BICYCLE, THE WARRANTY IS EXTENDED FOR THE LIFETIME OF THE ORIGINAL OWNER, with the exception of carbon bikes and frames. During warranty period, Kona shall repair or replace, at its sole option, the bicycle frame if Kona determines the frame is defective and subject to this limited warranty. The original owner shall pay all labor and shipping charges connected with the repair or replacement of the bicycle frame. Please see the Kona owner’s manual, provided with your bicycle, for additional information.
Note: this Limited Lifetime Warranty applies to purchases from Kona U.S.A., Kona Canada and Kona Europe.
