Kona Unit
The Unit has garnered a cult following among serious bikepackers. The love for fully-rigid steel is real. Still made with Reynolds Cromoly, the 2020 Unit is getting a facelift and a shiny new set of 29” boost wheels with thru-axles to help conquer rougher terrain. We’ve spec’d the Unit as a single-speed but its full-length freehub body allows for gears and the dropout has a derailleur hanger, should you want to modify your setup. Updated geometry provides better handling and a more comfortable ride, so you can get lost on those backwoods adventures!
COLOR: Matt Black w/ Sage & Charcoal Decals
$1,399.00
Why Buy at a Local Bike Bike?
Free Adjustments for Life
Any bike you buy from Bike Shop California or Bike Shop Santa Monica comes with free adjustments for life from the orginal owner.
Real Expert Bike Advice
We could probably make more money doing something else…but we are passionate about bikes. That means are up to date on the current trends and bikes as well as what is coming next.
Support Local Business
We are a local business creating real jobs in the community and supporting the idea of pollution free mobility. Money purchased at local businesses go directly back to supporting local economies.
Kona Unit Product Details
Specifications
Frame Material: Reynolds 520 Butted Cromoly
Fork: Kona Plus Fork
Wheels: WTB ST i30 TCS 29”
Crankset: FSA Comet Modular
Drivetrain: Single Speed
Brakes: Tektro HDM275 with 180mm front / 160mm rear rotor
Seat Post: Kona Thumb w/Offset
Cockpit: Kona XC/BC Riser Bar/Kona XC/BC Stem with Kona Lock-on Key Grip
Front Tire: WTB Ranger TCS 29×2.6”
Rear Tire: WTB Ranger TCS 29×2.6”
Saddle: WTB Volt Sport
| FRAME MATERIAL | Reynolds 520 Butted Cromoly |
| SIZES | S, M, L, XL |
| REAR SHOCK | n/a |
| FORK | Kona Plus Fork 110mm spacing |
| CRANKARMS | FSA Comet Modular |
| CHAINRINGS | 32t |
| B/B | FSA MegaExo 73mm |
| PEDALS | Kona JS2 |
| CHAIN | KMC Z1 Narrow |
| FREEWHEEL | Joytech 18t |
| CHAINGUIDE | n/a |
| F/D | n/a |
| R/D | n/a |
| SHIFTERS | n/a |
| BRAKE CALIPERS | Tektro HDM275 Hydraulic |
| FRONT BRAKE ROTOR | Tektro TR180 180mm |
| REAR BRAKE ROTOR | Tektro TR160 160mm |
| BRAKE LEVERS | Tektro HDM275 Hydraulic |
| HEADSET | TH ZST No.10 |
| HANDLEBAR | Kona XC/BC Riser |
| STEM | Kona XC/BC |
| SEATPOST | Kona Thumb w/Offset 31.6mm |
| SEAT CLAMP | Kona Clamp |
| GRIPS | Kona Key Grip |
| SADDLE | WTB Volt Sport (Sport 250 size S) |
| FRONT HUB | Formula 110x15mm |
| REAR HUB | Formula 148x12mm |
| SPOKES | Stainless Black 14g |
| RIMS | WTB ST i30 TCS |
| FRONT TIRE | WTB Ranger TCS 29×2.6″ |
| REAR TIRE | WTB Ranger TCS 29×2.6″ |
| PAINT COLOR | Matt Black w/ Sage & Charcoal Decals |
| EXTRAS | n/a |
*All specifications are subject to change without notice
Geometry
| mm | inches | ||||||||
| SIZE | S | M | L | XL | S | M | L | XL | |
| 1 | ST LENGTH | 370 | 420 | 470 | 530 | 14.6 | 16.5 | 18.5 | 20.9 |
| 2 | TT LENGTH | 582 | 610 | 637 | 675 | 22.9 | 24 | 25.1 | 26.6 |
| 3 | REACH | 425 | 450 | 475 | 510 | 16.7 | 17.7 | 18.7 | 20.1 |
| 4 | STACK | 588 | 597 | 606 | 615 | 23.1 | 23.5 | 23.9 | 24.2 |
| 5 | STANDOVER | 695 | 731 | 768 | 810 | 27.4 | 28.8 | 30.2 | 31.9 |
| 6 | HT ANGLE | 68 | 68 | 68 | 68 | 68 | 68 | 68 | 68 |
| 7 | HT LENGTH | 110 | 120 | 130 | 140 | 4.3 | 4.7 | 5.1 | 5.5 |
| 8 | ST ANGLE | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| 9 | CS LENGTH | 430 | 430 | 430 | 430 | 16.9 | 16.9 | 16.9 | 16.9 |
| 10 | BB DROP | 65 | 65 | 65 | 65 | 2.6 | 2.6 | 2.6 | 2.6 |
| 11 | BB HEIGHT | 310 | 310 | 310 | 310 | 12.2 | 12.2 | 12.2 | 12.2 |
| 12 | WHEELBASE | 1115 | 1144 | 1173 | 1211 | 43.9 | 45 | 46.2 | 47.7 |
| 13 | FRONT CENTER | 693 | 722 | 750 | 789 | 27.3 | 28.4 | 29.5 | 31.1 |
| 14 | FORK LENGTH | 470 | 470 | 470 | 470 | 18.5 | 18.5 | 18.5 | 18.5 |
| 15 | FORK OFFSET | 50 | 50 | 50 | 50 | 2 | 2 | 2 | 2 |
Sizing + Fit
ROAD/CX/ASPHALT
| HEIGHT/INCHES | HEIGHT/METRIC | INSEAM/INCHES | INSEAM/METRIC |
|---|---|---|---|
| 4’10”-5’1″ | 147-155 cm | 24”-27” | 61-69 cm |
| 5’0″-5’3″ | 152-160 cm | 26″-29″ | 66-74 cm |
| 5’2″-5’7″ | 157-170 cm | 27″-30″ | 69-76 cm |
| 5’6″-5’10” | 168-178 cm | 29″-31″ | 74-79 cm |
| 5’9″-6’0″ | 175-183 cm | 30″-33″ | 76-84 cm |
| 5’11”-6’2″ | 180-188 cm | 32″-35″ | 81-89 cm |
| 6’1″-6’5″ | 185-196 cm | 33″-36″ | 84-91 cm |
| ROAD/ROVE | LIBRE | CX/SUTRA | DEWS | COCO |
|---|---|---|---|---|
| 46-48 cm | 46 cm | 46-48 cm | N/A | XS |
| 48-50 cm | 46-49 cm | 48-50 cm | Small | Small |
| 48-52 cm | 49-51 cm | 48-52 cm | Small, Medium | Small, Medium |
| 52-54 cm | 51-54 cm | 52-54 cm | Medium | Medium |
| 52-56 cm | 54-55 cm | 52-56 cm | Medium, Large | Medium, Large |
| 54-58 cm | 54-55 cm | 54-58 cm | Large, XL | Large |
| 56-58 cm | 55 cm | 56-58 cm | XL | N/A |
MTB/ALL MOUNTAIN/GRAVITY
| HEIGHT/INCHES | HEIGHT/METRIC | INSEAM/INCHES | INSEAM/METRIC |
|---|---|---|---|
| 4’10”-5’1″ | 147-155 cm | 24”-27” | 61-69 cm |
| 5’0″-5’3″ | 152-160 cm | 26″-29″ | 66-74 cm |
| 5’2″-5’7″ | 157-170 cm | 27″-30″ | 69-76 cm |
| 5’6″-5’10” | 168-178 cm | 29″-31″ | 74-79 cm |
| 5’9″-6’0″ | 175-183 cm | 30″-33″ | 76-84 cm |
| 5’11”-6’2″ | 180-188 cm | 32″-35″ | 81-89 cm |
| 6’1″-6’5″ | 185-196 cm | 33″-36″ | 84-91 cm |
| SPLICE | MTB/XC TRAIL/FAT | ALL MOUNTAIN/ENDURO | GRAVITY/DH |
|---|---|---|---|
| Small | XS | XS | N/A |
| Small | Small | Small | N/A |
| Small, Medium | Small, Medium | Small, Medium | Medium |
| Medium | Medium | Medium | Medium |
| Medium, Large | Medium, Large | Medium, Large | Medium, Large |
| Large, XL | Large, XL | Large, XL | Large, XL |
| Large, XL | Large, XL | Large, XL | Large, XL |

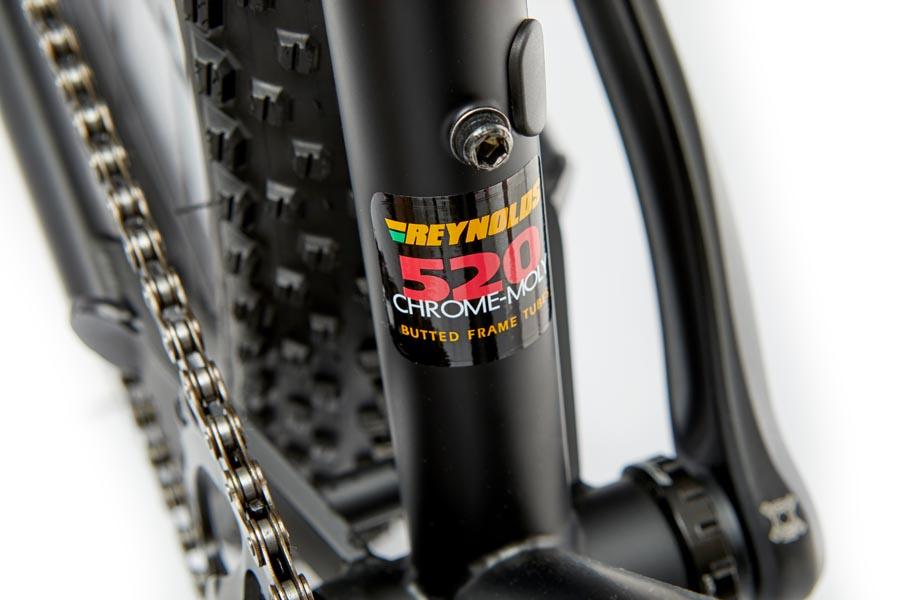

REYNOLDS 520 CROMOLY
Reynolds 520 tubes are mandrel-butted for accurate profiles and available in a wide range of shapes. Weight savings from butting provides competitively priced, light framesets that are noticeably compliant on the road or the trail, and are guaranteed to last a lifetime.
INTERNAL HEADSET
Bearing cups are actually pressed into the frame and are easily removable. An internal headset also reduces stack height, so the height of the stem and bars are more adjustable, giving the rider the best fit possible.

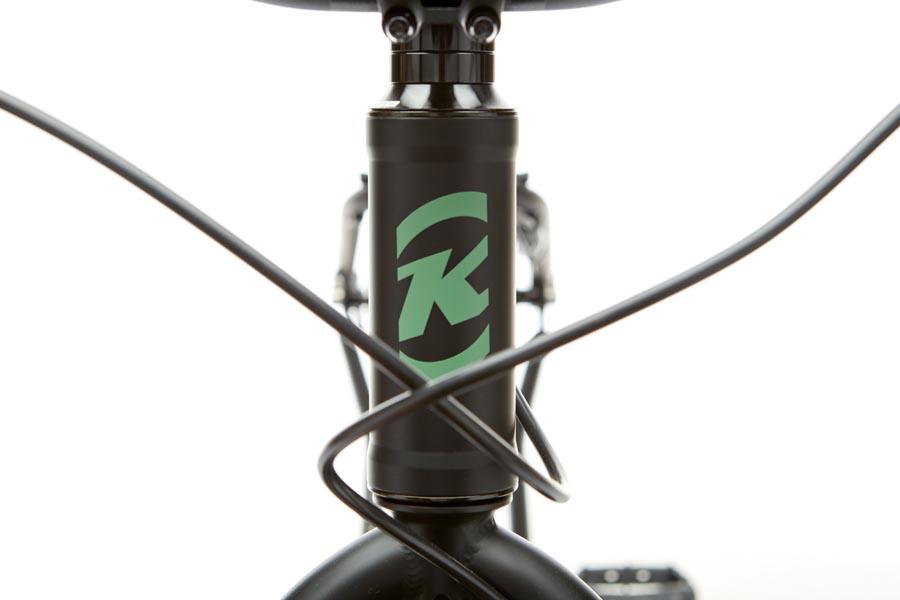

44mm HEAD TUBE
44mm oversized heatubes allow us to run tapered steerer forks by using a large external lower cup headset bearing. The larger diameter steerer tube adds considerable stiffness and will increase responsiveness to the front end, improving all-around performance.

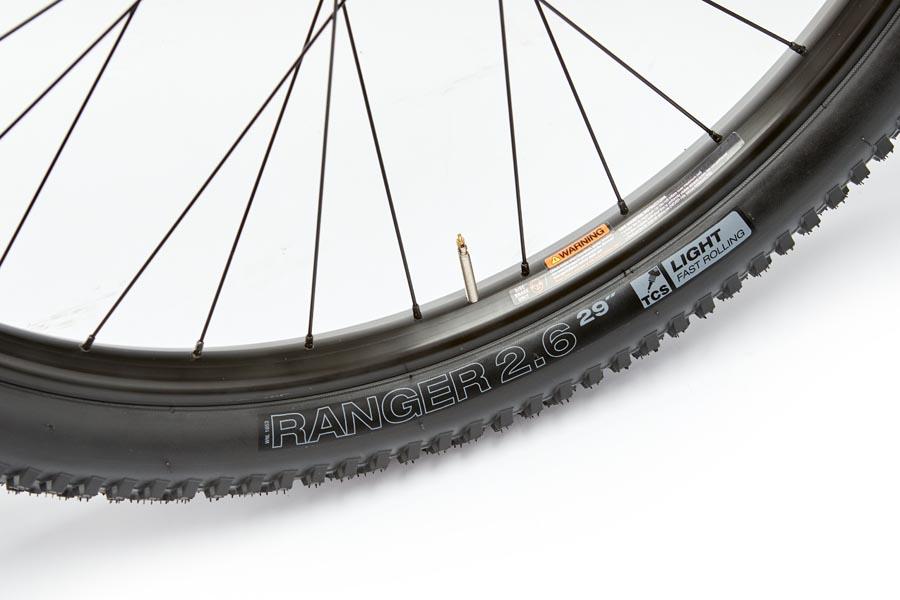

TUBELESS COMPATIBLE RIMS
Tubeless rims allow for tires with more puncture resistance; the ability to run lower tire pressure, which provides better tire grip on the trail; lower rolling resistance; and weight savings over traditional tube and tire systems.
12x148mm AXLE
12x142mm, 12×148 and 12×157 rear axle standards provide two major advantages to the Kona rider: the 12mm diameter of the rear axle provides the rear hub and frame with a stiff interface, while the 142/148/157mm outer diameter of the hub allows the wheel to be quickly and properly positioned in the frame before the rear axle is inserted. For 2017, you’ll see the 12×148 Boost standard in the mix. Boost spacing provides more tire clearance at the chainstay yoke, while the rear wheel is stiffer and more durable relative to a 12×142 thru-axle.
LIFETIME WARRANTY
Register a new Kona bike within three months of purchase, and the original owner qualifies the Kona frame for a free Lifetime Warranty. Note: this does not apply to Kona Carbon models.
ONE-YEAR LIMITED WARRANTY ON COMPLETE BICYCLE
Kona warrants to the original owner that this new Kona bicycle shall be free of defective materials and workmanship for a period of one year from the date of original purchase in the United States or Canada and operated under normal conditions and use. During this one-year period, Kona shall repair or replace, at its sole option, all parts that are found by Kona to be defective and subject to this limited warranty. The original owner shall pay all labor charges connected with the repair or replacement of all parts.
LIFETIME LIMITED WARRANTY ON BICYCLE FRAME
When warranty on non-carbon Kona bikes and frames is NOT registered within three months of purchase, Kona warrants to the original owner that the frame of this new Kona bicycle purchased from an authorized Kona dealer shall be free of defective materials or workmanship for a three-year period. IF THE WARRANTY IS REGISTERED WITH KONA WITHIN THREE MONTHS AFTER THE PURCHASE OF THE BICYCLE, THE WARRANTY IS EXTENDED FOR THE LIFETIME OF THE ORIGINAL OWNER, with the exception of carbon bikes and frames. During warranty period, Kona shall repair or replace, at its sole option, the bicycle frame if Kona determines the frame is defective and subject to this limited warranty. The original owner shall pay all labor and shipping charges connected with the repair or replacement of the bicycle frame. Please see the Kona owner’s manual, provided with your bicycle, for additional information.
Note: this Limited Lifetime Warranty applies to purchases from Kona U.S.A., Kona Canada and Kona Europe.
