Magnum Mi6

Description

Model:
Mi6
Body Position:
Forward
Electric Bike Class:
Throttle On-demand (Class 2), Speed Pedelec (Class 3)
*Throttle can be removed for Class 1
Warranty:
1 Year Comprehensive
Max Load:
265lbs

Electronic Details

Motor Type:
Das-kit R4 Rear Geared Hub Motor
Motor Output:
48v 500w
Battery Voltage / Amp Hours / Watt Hours:
48v / 13ah / 624wh / With Usb Port
Battery Chemistry:
Lithium Nickel Cobalt Manganese (Li-ncm)
Estimated Charge Time:
6.5 Hrs
Estimated Min And Max Range:
30 To 60 Miles (Depending On Riding Style, Terrain, Rider Weight And Peddle Assist Level.)
Display Type:
Das-kit L7, Fixed, Backlit, Monochrome Lcd
Display Records:
Power (Current), Battery Level (6 Bars), Speed, Assist Level (0-6), Odometer, Trip Distance, Trip Time
Drive Modes:
Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode
Top Speed:
25mph With Pedal Assist, 20mph Throttle Only

Bicycle Details

Total Weight:
59lbs
Battery Weight:
9lbs
Frame Type:
High Step
Frame Material:
6061 Aluminum Alloy
Fork Details:
Sr Suntour Xcm Spring Suspension, 100mm Travel, Compression Adjustment, Lockout
Attachment Points:
Rear Rack Bosses, Fender Bosses, Bottle Cage Bosses
Gearing Details:
24 Speed 3×8, Shimano Altus Front Derailleur, Shimano Acera Rear Derailleur 11-32t Rear Cassette
Shifter Details:
Shimano Altus Speed Trigger Shifter
Cranks:
Shimano 28-33-42t Chainring, 170mm, Square Taper Bottom Bracket
Pedals:
Wellgo Aluminum Platform, B087
Stem:
Promax, 110 Mm Length, Aluminum Alloy
Brake Details:
Tektro Mechanical Disc With 180mm Front  And Rear Rotors, Tektro Levers With Left Side Motor Inhibitor
Grips:
Velo Flat Rubber With Lockers
Saddle:
Promax
Seatpost / Seatpost Dimensions:
Promax, 30.9 X 350mm
Rims:
Aluminum Alloy, Double Walled, 36 Hole
Tires:
Schwalbe Smart Sam, Reflective Sidewall Stripe, Kevlar Lined, Schrader Valve
Wheel Size:
27.5 X 2.25

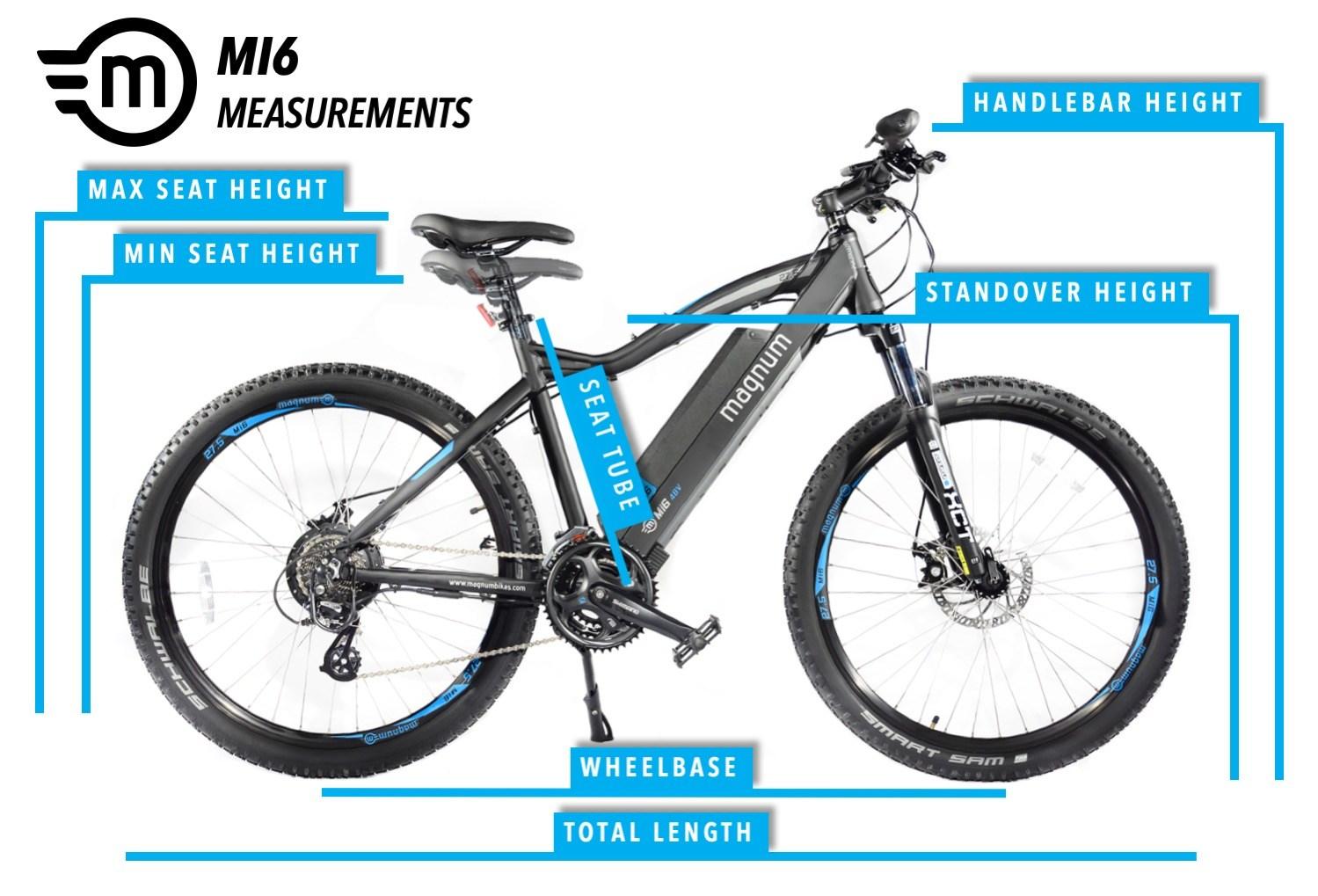

M16 Measurement
