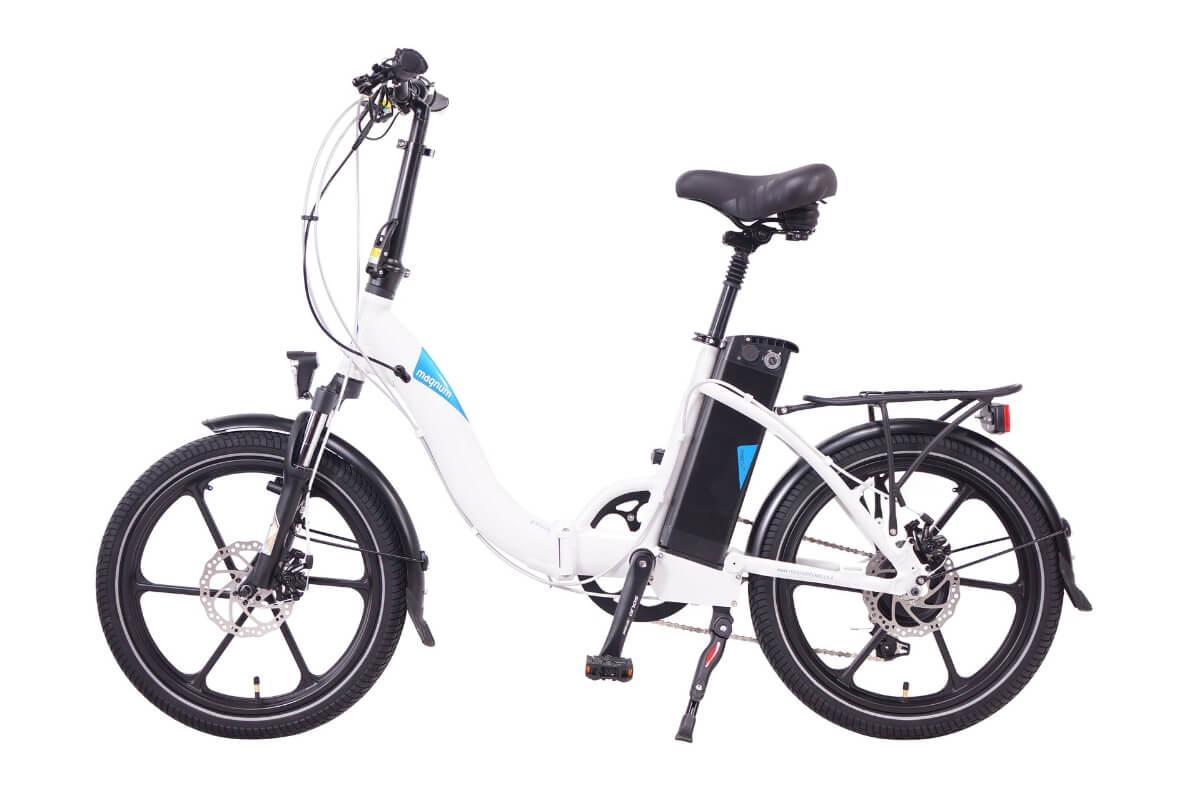

Magnum Premium Low Step

Description

Model:
Magnum Premium Low Step
Body Position:
Upright
Electric Bike Class:
Throttle On-demand (Class 2), Speed Pedelec (Class 3)
*Throttle can be removed for Class 1
Warranty:
1 Year Comprehensive
Max Load:
242lbs

Electronic Details

Motor Type:
8fun Rear-mounted Geared Hub 48v 500w
Motor Output:
48v 500w
Battery Voltage / Amp Hours / Watt Hours:
48v / 13ah / 624wh / With Usb Port
Battery Chemistry:
Lithium Nickel Cobalt Manganese (Li-ncm)
Estimated Charge Time:
6.5 Hrs
Estimated Min And Max Range:
25 To 55 Miles (Depending On Riding Style, Terrain, Rider Weight And Peddle Assist Level.)
Display Type:
Das-kit C6, Fixed, Backlit, Monochrome Lcd
Display Records:
Power Output Indicator(6 Bars), Battery Level (6 Bars), Speed, Assist Level (0-6), Odometer, Trip Distance, Trip Time, Battery Voltage
Drive Modes:
Cadence Sensing Pedal Assist, Trigger Throttle
Top Speed:
25mph With Pedal Assist, 20mph Throttle Only
Lights:
Independent Front Headlight, Independent Rear Light

Bicycle Details

Total Weight:
55lbs
Battery Weight:
10lbs
Frame Type:
High Step / Folding
Frame Material:
6061 Aluminum Alloy
Fork Details:
Rst Carve Suspension, Preload Adjustment, 60mm Travel
Attachment Points:
Rear Rack Bosses, Fender Bosses
Gearing Details:
Shimano Tourney 7 Speed
Shifter Details:
Shimano Revoshift
Cranks:
Prowheel, 165mm, 52t With Aluminum Guide
Pedals:
Shimano, Plastic Folding
Stem:
Tool-free Adjustable Height (Three Locking Positions) / Folding, Flat
Brake Details:
Promax Mechanical Disc With 180mm Front Rotor And 160mm Rear Rotor
Grips:
Welle Royal
Saddle:
Selle Royal Wide Gel
Seatpost / Seatpost Dimensions:
Promax, 27.2 X 350mm
Fenders:
Front And Rear
Rims:
Double Walled
Tires:
Cst, Kevlar Lined, Reflective Sidewall Stripe, Schrader Valve
Wheel Size:
20″ X 1.9″ Mag Wheels
Folded Dimensions:
14″ X 33″ X 33″

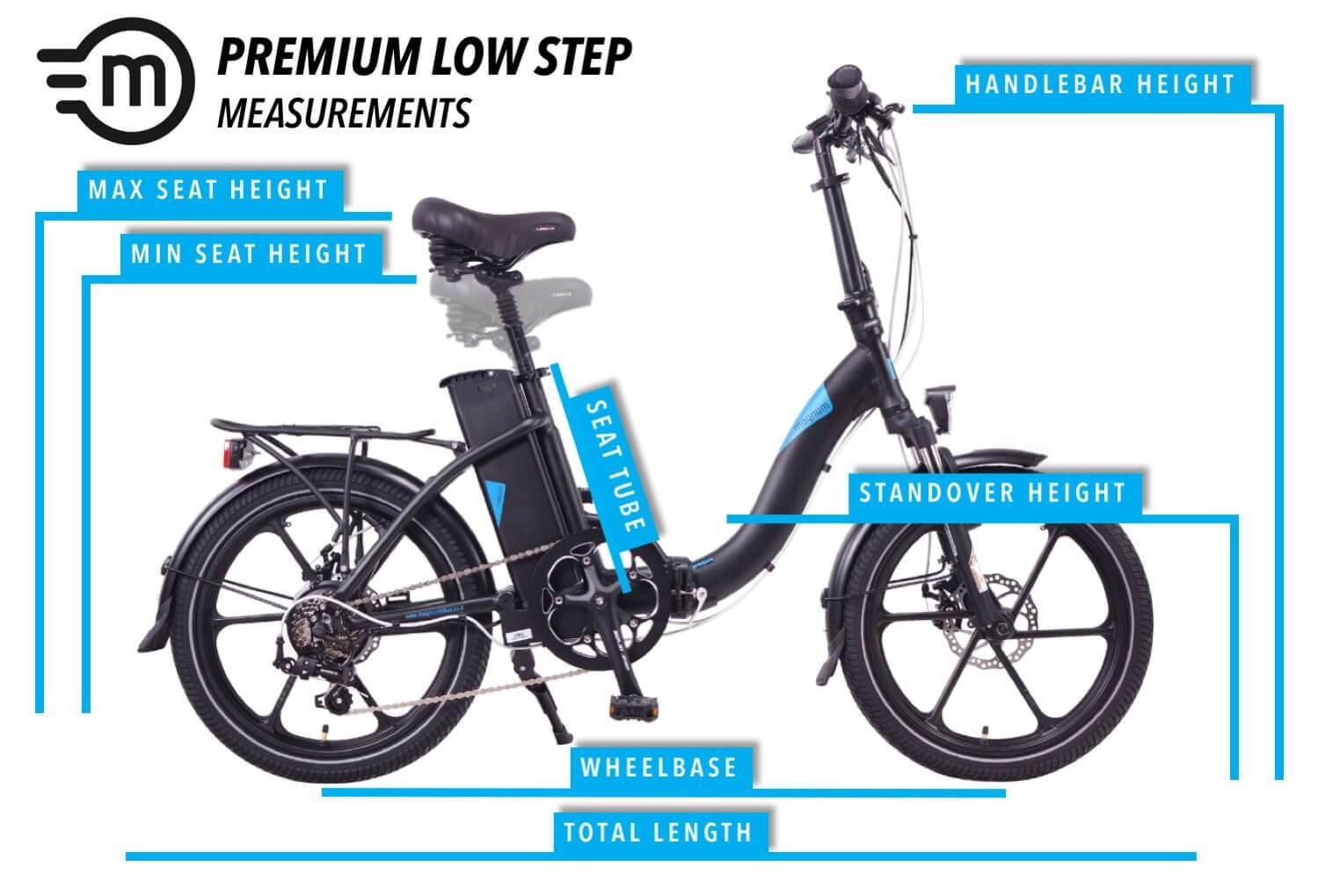

Premium Low Step Measurements
