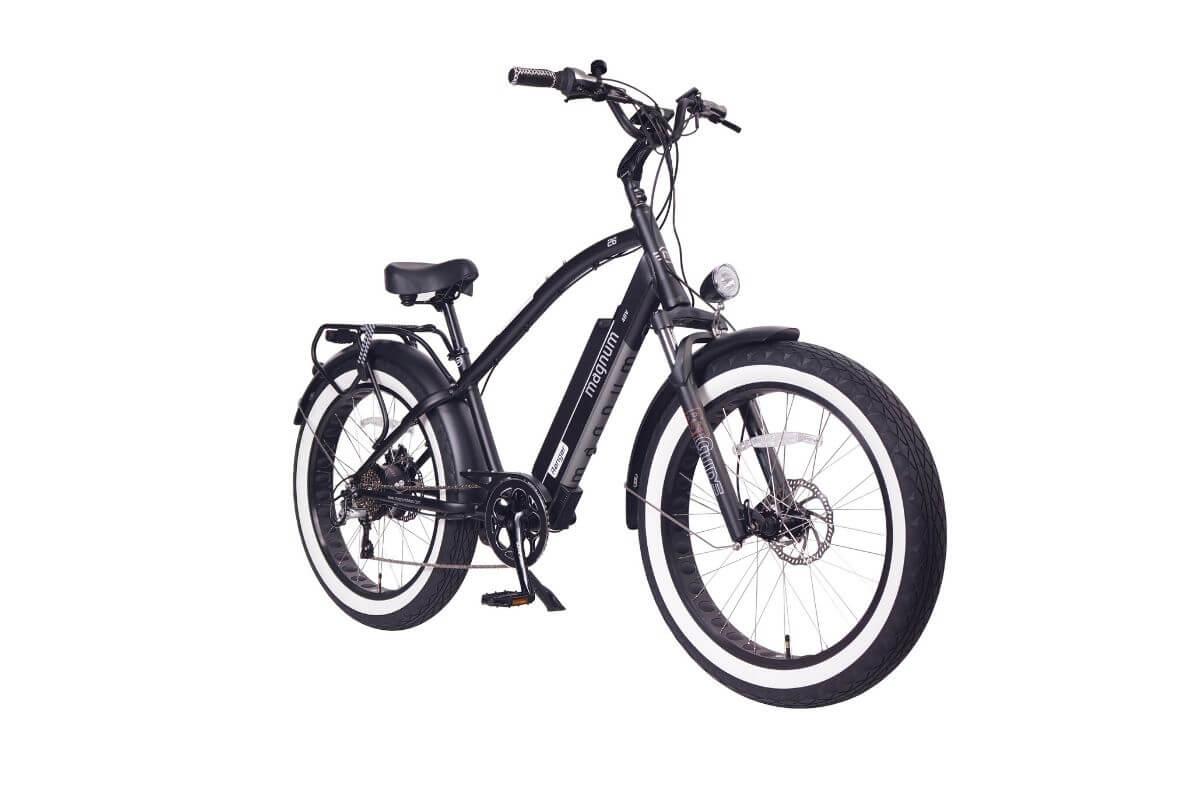

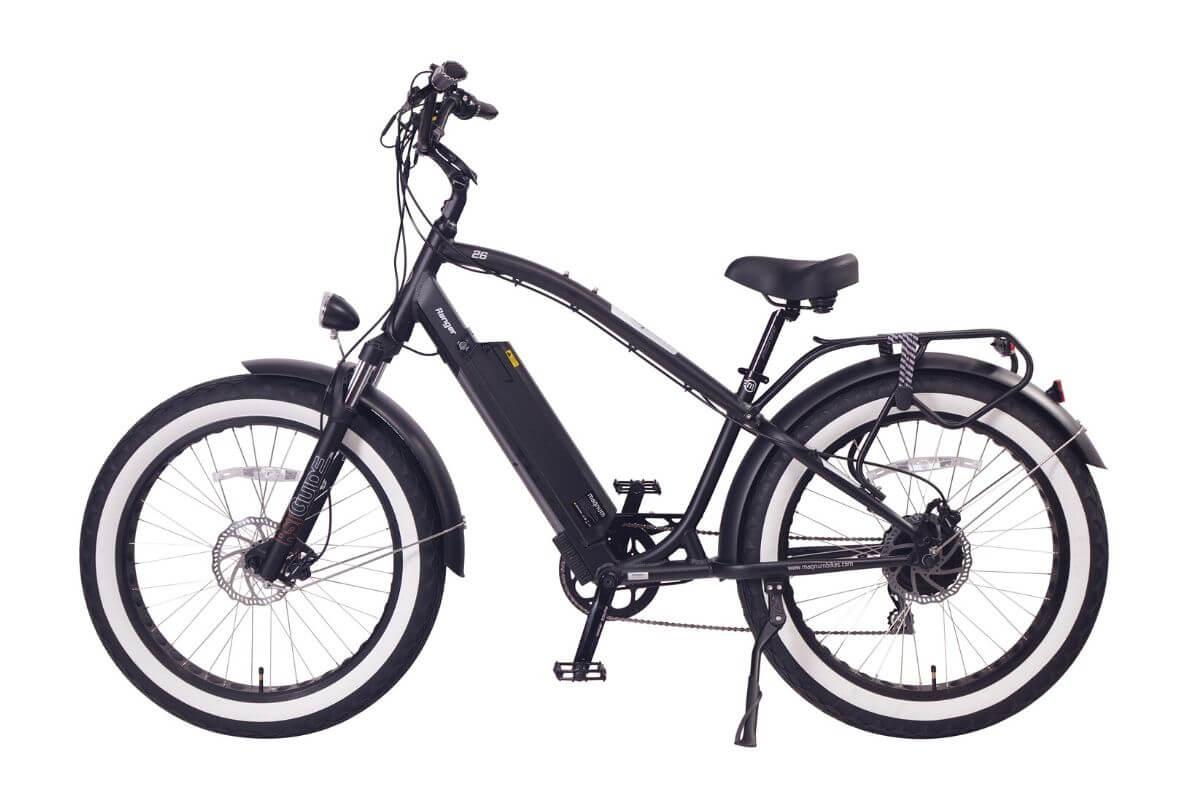

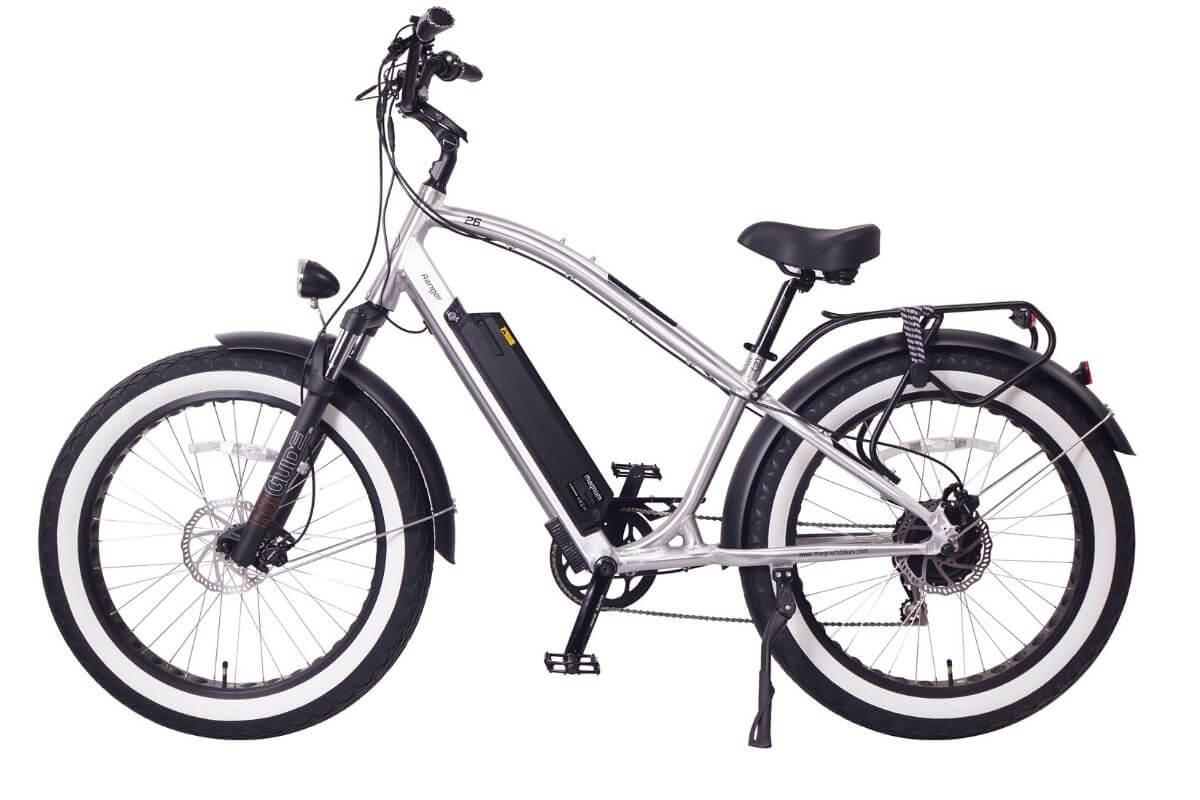

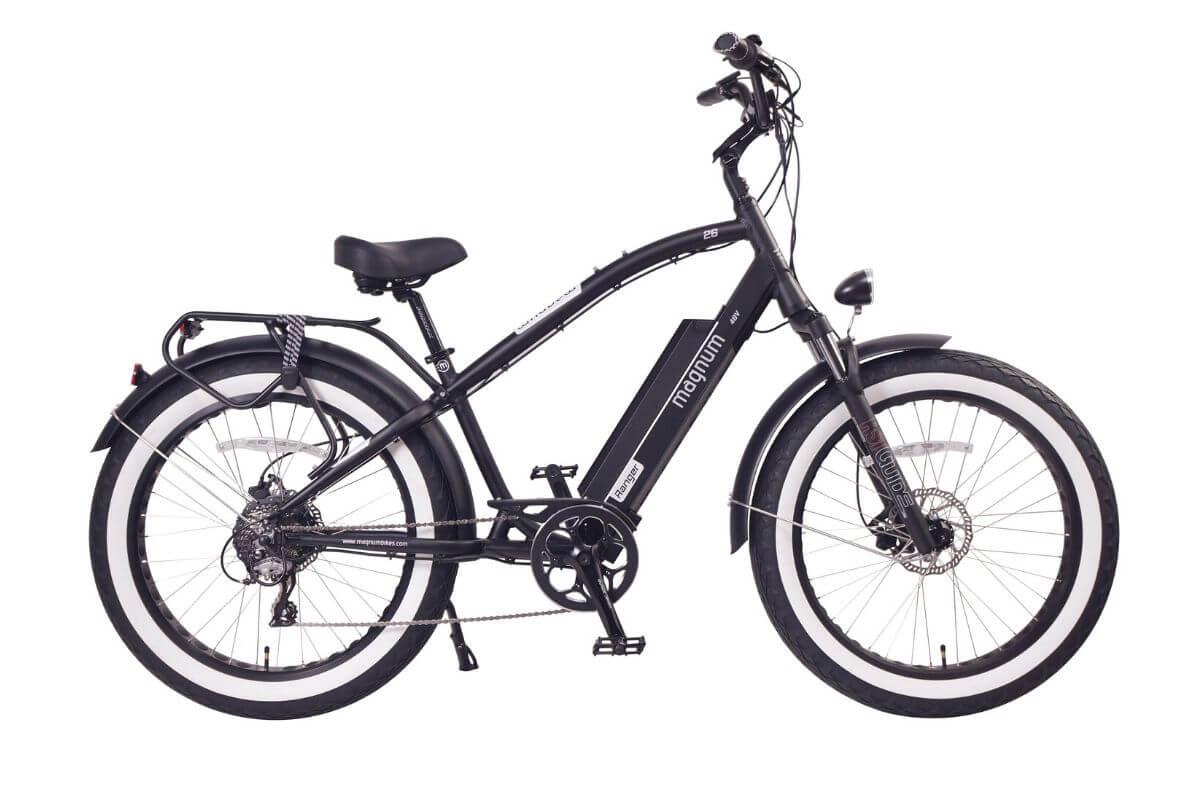

Magnum Ranger

Description

Model:
Magnum Ranger
Body Position:
Upright, Upright Relaxed
Warranty:
1 Year Comprehensive
Max Load:
265lbs

Electronic Details

Motor Type:
Das Kit 750w Rear Geared Hub Motor
Motor Output:
48v 750w
Battery Voltage / Amp Hours / Watt Hours:
48v / 13ah / 624wh / With Usb Port
Battery Chemistry:
Lithium Nickel Cobalt Manganese (Li-ncm)
Estimated Charge Time:
6.5 Hrs
Estimated Min And Max Range:
25 To 75 Miles (Depending On Riding Style, Terrain, Rider Weight And Peddle Assist Level.)
Display Type:
Das-kit C7, Fixed, Backlit, Monochrome Lcd
Display Records:
Power Output Indicator(6 Bars), Battery Level (6 Bars), Speed, Assist Level (0-6), Odometer, Trip Distance, Trip Time, Battery Voltage
Drive Modes:
Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode
Top Speed:
25mph With Pedal Assist, 20mph Throttle Only
Lights:
Independent Front Headlight, Independent Rear Light

Bicycle Details

Total Weight:
75lbs
Battery Weight:
9lbs
Frame Type:
High Step
Frame Material:
6061 Aluminum Alloy
Fork Details:
Rst Guide Spring Suspension, 80mm Travel With Lockout
Attachment Points:
Rear Rack Bosses, Fender Bosses
Gearing Details:
Shimano, Acera Derailleur, 8 Speed
Shifter Details:
Shimano Grip Revoshift 8 Speed, 11-32t
Cranks:
Prowheel Ounce 48t Chainring With Alloy Guard, 170mm, Square Taper Bottom Bracket
Pedals:
Wellgo Alloy Platform Vb087
Stem:
Promax, Tool-free Adjustable, 100mm Length
Brake Details:
Tektro Auriga Hydraulic Disc Brakes With Motor Inhibitors 180mm Front, 160mm Rear
Grips:
Selle Royal Brown
Saddle:
Selle Royal Cruiser With Gel And Dual Spring Suspension
Seatpost / Seatpost Dimensions:
Promax, Sp-252 / 30.4 X 300mm
Fenders:
Front And Rear
Rims:
Aluminum Alloy, Double Walled, Oval Cut Outs, 81mm Outer Diameter, 36 Hole
Tires:
Chao Yang H-5193
Wheel Size:
26″ X 4.0”
