Marin Hawk Hill 2

Specs



FRAME

Series 3 6061 Aluminum Frame, 27.5” Wheels, 120mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs

FORK

RockShox Recon RL 27.5″, 130mm Travel, Solo Air, Compression and Rebound Adjustment, Alloy Tapered Steerer, Fast Black Uppers, 110x15mm Boost Spacing, Maxle Stealth, 46mm Offset

SHOCK

RockShox Deluxe Select R, Debonair Air Sleeve, Rebound Adjustment, Custom Tune, 210x50mm, 22.2mm x M8 Hardware

RIMS

Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible

HUB REAR

Forged Alloy, 148x12mm, Quad Sealed Bearings, Centerlock Disc, 32H, Standard Feehub Body

HUB FRONT

Forged Alloy, 110x15mm, Centerlock Disc, 32H

SPOKES

14g Black Stainless Steel

TIRES

Vee Tire Co, Flow Snap, 27.5×2.35, Tackee Compound, 72 TPI, Tubeless Compatible

DERAILLEUR REAR

SRAM SX 12-Speed Long Cage

SHIFT LEVER

SRAM SX 12-Speed

CRANKSET

Sram SX Eagle, 32T Direct Mount Narrow Wide Steel Chainring

BOTTOM BRACKET

Sram Powerspline, 73mm BSA

CHAIN

Sram SX Eagle

CASSETTE

Sram PG-1210 Eagle 11-50T

BRAKES FRONT

Shimano BR-MT201 Hydraulic Disc, 180mm Rotor

BRAKES REAR

Shimano BR-MT201 Hydraulic Disc, 180mm Rotor

BRAKE LEVERS

Shimano BR-MT201 Hydraulic Disc

HANDLEBAR

Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm rise, 5º Up, 9º Back

STEM

Marin 3D Forged Alloy, 35mm

GRIPS

Marin Single Clamp Locking

HEADSET

FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8″ x 1 1/2”

SEATPOST

TranzX, YSP23JL, 1x Remote, Size S 125mm Travel, Size M & L 150mm Travel, Size XL 175mm Travel, 30.9mm

SADDLE

Marin Speed Concept

PEDALS

Not Included.

EXTRAS

Bolt-on Thru-Axle



Geometry

	S	M	L	XL
STACK (A)	583.6	588.2	597.3	601.9
REACH (B)	425	445	465	485
HEADTUBE ANGLE (C)	66.5°	66.5°	66.5°	66.5°
HEADTUBE LENGTH (D)	110	120	125	130
SEATTUBE ANGLE (EFFECTIVE) (E)	74.7°	74.5°	74.3°	74.1°
SEATTUBE LENGTH (F)	280	425	470	515
TOPTUBE (EFFECTIVE) (G)	586.8	608.1	632.9	651.9
BOTTOM BRACKET HEIGHT (H)	338.5	338.5	338.5	338.5
BOTTOM BRACKET DROP (I)	18	18	18	18
CHAINSTAY (J)	430	430	430	430
WHEELBASE (K)	1146.3	1168.3	1192.3	1214.3
STANDOVER HEIGHT (L)	665	702	727	768
FORK OFFSET (M)	42	42	42	42
SEATPOST DIAMETER	30.9	30.9	30.9	30.9
HANDLEBAR WIDTH	780	780	780	780
STEM LENGTH	35	35	35	35
CRANK LENGTH	170	175	175	175
All lengths in Millimeters



Technology

SERIES 3 ALUMINUM FRAME +        27.5” WHEELS	The Hawk Hill has a Series 3 6061 butted and hydroformed aluminum frame with 120mm travel MultiTrac suspension technology and playful 27.5” wheels. 27.5” wheels fit most riders better and create a lightweight and responsive bike, the most playful trail bike in the line.
MULTITRAC SUSPENSION TECHNOLOGY	MultiTrac is an acclaimed suspension system, fine-tuned to have a balanced ride capable of absorbing big hits with an efficient pedaling platform. The rocker link provides a progressive leverage ratio for the rear shock for small bump sensitivity and the feeling of a long travel system on large drops and rocks.
INTERNAL ROUTING	Hawk Hill models are compatible with internally routed dropper posts, with internal rear derailleur routing for a clean look and snag free ride.
148X12MM THRU-AXLE	Boost front spacing is paired with a 148x12mm Boost rear thru-axle on the Hawk Hill 3 and Hawk Hill 2 for frame and wheel strength, and future wheel upgrade compatibility.

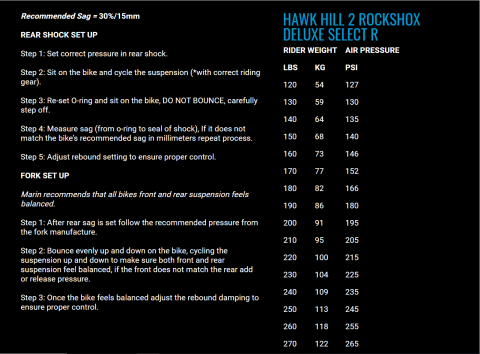

Air Charts
