Marin Hawlk Hill JR
FUN!
The Hawk Hill Jr is for the ambitious kid looking to keep up with the adults and push the boundaries of the local bike park on a bike just as capable as its full size counterpart.
COLOR Gloss Cyan/Black
SIZE 24″ wheel
RIDER HEIGHT RANGE 4’1″to5’5″
$1,599.99
Why Buy at a Local Bike Bike?
Free Adjustments for Life
Any bike you buy from Bike Shop California or Bike Shop Santa Monica comes with free adjustments for life from the orginal owner.
Real Expert Bike Advice
We could probably make more money doing something else…but we are passionate about bikes. That means are up to date on the current trends and bikes as well as what is coming next.
Support Local Business
We are a local business creating real jobs in the community and supporting the idea of pollution free mobility. Money purchased at local businesses go directly back to supporting local economies.
Marin Hawlk Hill JR Product Details
Specs
FRAME
Series 3 6061 Aluminum Frame, 24″ wheel with clearance for up to 26″, 120mm Travel, MultiTrac Suspension Platform, 135mm Open Dropout (Upgradeable to 142x12mm Thru-Axle), 73mm Threaded BB
FRONT SUSPENSION
X-Fusion Velvet RLC 26″, 120mm Travel, Compression and Rebound Adjustment, 100x15mm Thru-Axle
REAR SUSPENSION
X-Fusion O2 Pro R, 190x51mm, Custom Tune, 22.2mm x M8 Hardware
RIM
Marin, Double Wall Alloy, 27mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible
HUB REAR
Forged Alloy, 135mm, Quad Sealed Bearings, Centerlock Disc, 32H
HUB FRONT
Forged Alloy, 100x15mm, Centerlock Disc, 32H
SPOKES
14g Stainless Steel
TIRES
Vee Tire Co, Flow Snap 24×2.4″, Tackee Compound, Wire Bead
DERAILLEUR REAR
Shimano Deore Shadow Plus
DERAILLEUR FRONT
–
SHIFT LEVER
Micro Shift, SLM895, 11 speed
CRANKSET
Marin Forged Alloy 1×11, Hollow Spindle, Steel Narrow-Wide 32T Chainring, Direct Mount Type
BOTTOM BRACKET
External Sealed Cartridge Bearings
CHAIN
KMC X11
CASSETTE
SunRace 11-Speed, 11-46T
BRAKES FRONT
Shimano MT-201 Hydraulic Disc, 180mm Rotor
BRAKES REAR
Shimano MT-201 Hydraulic Disc, 160mm Rotor
BRAKE LEVERS
Shimano BL-MT201 Hydraulic
HANDLEBAR
Marin Mini-Riser, 6061 Double Butted Aluminum, 15mm Rise, 720mm Width, 4º Up, 9º Back
STEM
Marin 3D Forged Alloy, 35mm
GRIPS
Marin Dual Density
HEADSET
FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8″ x 1 1/2”
SEATPOST
Marin Alloy, 27.2mm
SADDLE
Marin Speed Concept
PEDALS
Kids Specific Nylon Pedal

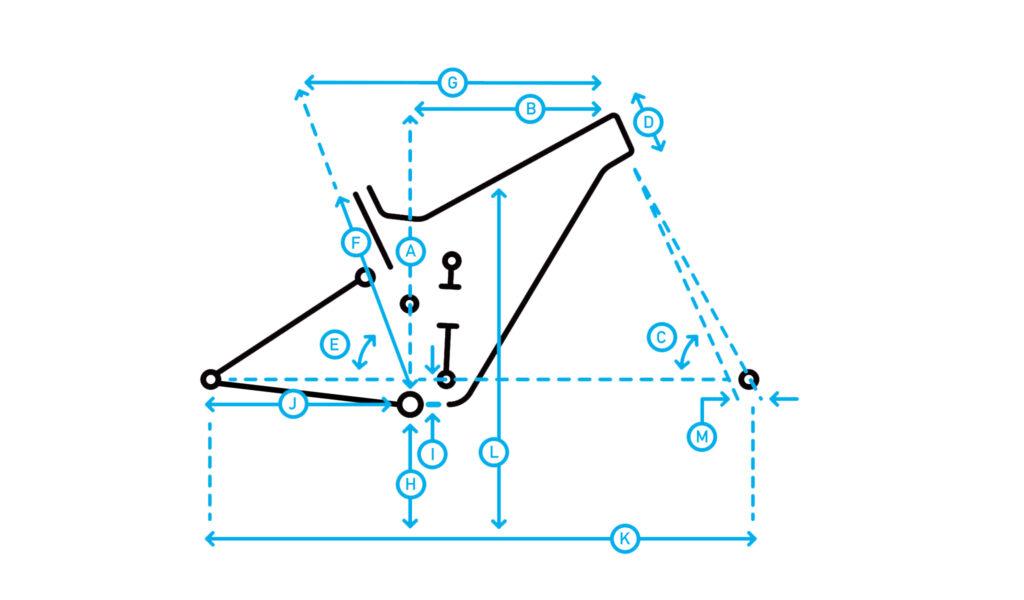

Geometry
13″ |
|
| STACK (A) | 536.24 |
| REACH (B) | 380 |
| HEADTUBE ANGLE (C) | 67.5° |
| HEADTUBE LENGTH (D) | 105 |
| SEATTUBE ANGLE (EFFECTIVE) (E) | 69° |
| SEATTUBE LENGTH (F) | 335 |
| TOPTUBE (EFFECTIVE) (G) | 536 |
| BOTTOM BRACKET HEIGHT (H) | 305 |
| BOTTOM BRACKET DROP (I) | 10 |
| CHAINSTAY (J) | 428.5 |
| WHEELBASE (K) | 1018 |
| STANDOVER HEIGHT (L) | 621 |
| FORK OFFSET (M) | 42 |
| SEATPOST DIAMETER | 30.9 |
| HANDLEBAR WIDTH | 720 |
| STEM LENGTH | 45 |
| CRANK LENGTH | 152 |
| All lengths in Millimeters |
Technology
| 24” WHEELS – UPGRADEABLE
TO 26”
|
The Hawk Hill Jr can fit 26” wheels down the road, extending its life and versatility.
|
| AIR SUSPENSION
|
Easily adjustable air suspension is tunable for a growing kid.
|
| INTERNAL ROUTING
|
The Hawk Hill Jr is compatible with internally routed dropper posts, with internal rear derailleur routing for a clean look and snag free ride.
|
| DISC BRAKES
|
Hydraulic disc brakes provide smooth, controlled stopping in all conditions with minimal maintenance.
|

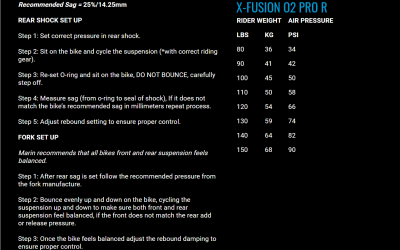

Air Charts
