Marin Presidio 4 Dlx
COMMUTING
CITY TRANSIT
The Presidio is our dedicated commuting range, designed with low maintenance and adaptability in mind. Internal gearing, disc brakes, puncture resistant tires and high performance belt drives or corrosion-resistant chains are built tough for city streets, while the lightweight aluminum frames feature all of the attachment points and braze-ons that commuters demand.
COLOR: Satin Black
$2,349.99
Why Buy at a Local Bike Bike?
Free Adjustments for Life
Any bike you buy from Bike Shop California or Bike Shop Santa Monica comes with free adjustments for life from the orginal owner.
Real Expert Bike Advice
We could probably make more money doing something else…but we are passionate about bikes. That means are up to date on the current trends and bikes as well as what is coming next.
Support Local Business
We are a local business creating real jobs in the community and supporting the idea of pollution free mobility. Money purchased at local businesses go directly back to supporting local economies.
Marin Presidio 4 Dlx Product Details
Specs
FRAME
Series 4 Commute, 6061 Aluminum, 700C Wheels, Sliding Dropouts, Tapered Head Tube, Internal Cable Routing, Belt Drive Compatible, Flat-Mount Disc, Fender, Rack, and Integrated Kickstand Mounts
FORK
Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
RIM
Marin Aluminum Double Wall, 21mm Inner, 30mm Tall, Tubeless-Compatible, Disc Specific
HUB REAR
Shimano Alfine 11-Speed Internally Geared Hub, Centerlock Disc
HUB FRONT
Shimano Alfine Dynamo 6V-3W, Centerlock Disc
SPOKES
14g Black Stainless Steel
TIRES
Continental Sport Contact II, 700Cx32, Puncture Protection, Reflective Sidewall, Wire Bead
DERAILLEUR REAR
–
DERAILLEUR FRONT
–
SHIFT LEVER
Shimano Alfine 1×11-Speed
CRANKSET
Shimano Alfine Hollowtech II, Gates Carbon Drive CDX 50T, Ring Guard
BOTTOM BRACKET
Shimano Hollowtech II
BELT
Gates Carbon Drive CDX Centertrack Belt, 115T
COG
Gates Carbon Drive CDX, 22T
BRAKES FRONT
Shimano U300 Flat-Mount Hydraulic Disc, 160mm Rotor
BRAKES REAR
Shimano U300 Flat-Mount Hydraulic Disc, 160mm Rotor
BRAKE LEVERS
Shimano Hydraulic
HANDLEBAR
Marin Alloy Flat Top Riser
STEM
Marin 3D Forged Alloy
GRIPS
Marin Ergonomic Locking
HEADSET
FSA Orbit CE, Sealed Cartridge Bearings
SEATPOST
Marin Alloy, 27.2mm
SADDLE
Marin Fitness Elite
PEDALS
Commute Platform
FENDER
Custom Extruded Aluminum Alloy w/ Stainless Hardware
RACK
Custom Aluminum Rear Rack
KICKSTAND
Integrated Rear Mount
LIGHT
Supernova E3 Pure 3 Dynamo Headlight, E3 Tail Light

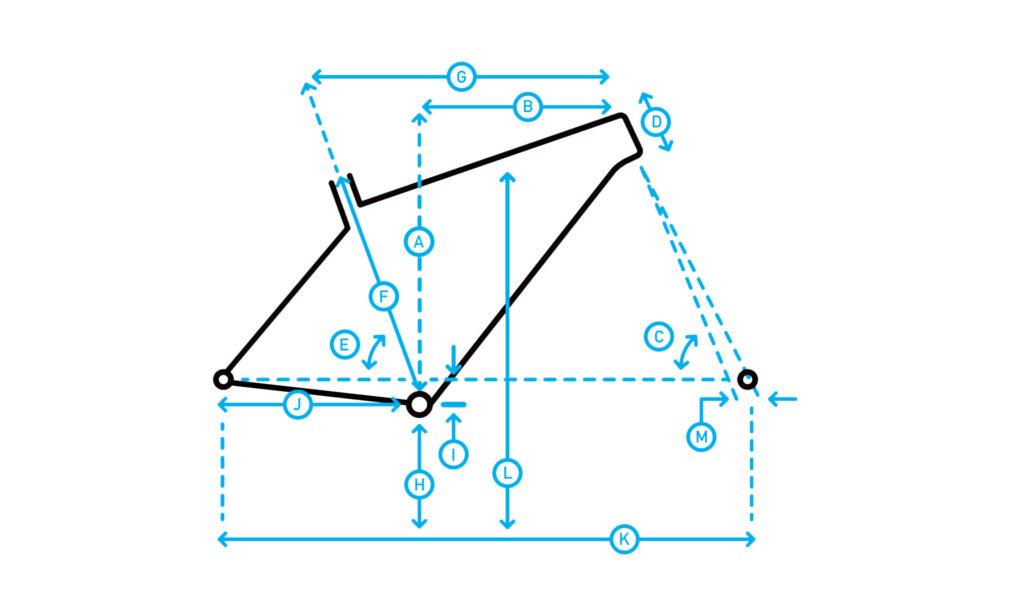

Geometry
| XS | S | M | L | XL | |
| STACK (A) | 557.89 | 576.97 | 596.04 | 615.11 | 643.73 |
| REACH (B) | 384.74 | 394.09 | 403.44 | 411.94 | 423.19 |
| HEADTUBE ANGLE (C) | 72.5° | 72.5° | 72.5° | 72.5° | 72.5° |
| HEADTUBE LENGTH (D) | 135 | 155 | 175 | 195 | 225 |
| SEATTUBE ANGLE (ACTUAL) (E) | 73.5° | 73.5° | 73.5° | 73° | 73° |
| SEATTUBE LENGTH (F) | 381 | 431.8 | 482.6 | 520.7 | 558.8 |
| TOPTUBE (EFFECTIVE) (G) | 550 | 565 | 580 | 600 | 620 |
| BOTTOM BRACKET HEIGHT (H) | 280 | 280 | 280 | 280 | 280 |
| BOTTOM BRACKET DROP (I) | 65 | 65 | 65 | 65 | 65 |
| CHAINSTAY (J) | 435 | 435 | 435 | 435 | 435 |
| WHEELBASE (K) | 1017.5 | 1032.8 | 1048.2 | 1062.7 | 1083 |
| STANDOVER HEIGHT (L) | 659.9 | 705.6 | 750 | 783.5 | 819.1 |
| FORK OFFSET (M) | 45 | 45 | 45 | 45 | 45 |
| SEATPOST DIAMETER | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
| HANDLEBAR WIDTH | 620 | 620 | 620 | 620 | 620 |
| STEM LENGTH | 70 | 70 | 90 | 90 | 110 |
| CRANK LENGTH | 170 | 170 | 175 | 175 | 175 |
| All lengths in Millimeters | |||||
Technology
| SERIES 2 FRAMES | Series 2 Transit frames are constructed of lightweight 6061 aluminum tubing with internal cable routing, post mount dis brakes, and forged dropouts with rack and fender mounts, and an integrated kickstand mount. |
| MARIN SLIDER DROPOUTS | Our new slider dropouts were created specifically to bring the best technologies for commute bikes into a clean and tidy package. The dropouts slide to tension belts and chains, while incorporating flat mount disc brakes, and a direct mount rear kickstand to support the bike where weight is centered with gear. |
| DISC BRAKES | Hydraulic disc brakes provide smooth, controlled stopping in all conditions with minimal maintenance. |
| INTERNALLY GEARED HUBS | Internally geared hubs package the gearing into a compact, maintenance-free package. |
