NCM Moscow Electric Mountain Bike 500 Watt

$1,499.00$1,799.00

Make riding around town to do errands and adventure! This bike is an incredible value with a big long-range 48V Lithium-Ion battery pack. You’ll never look at your commute the same way again. No gimmicks, this bike goes further, and have more fun for under $1,500!

  • Free Shipping to Lower 48 States
  • Free Assembly and Adjustments for 1 year after purchase at our 2 Los Angeles Locations (Culver City/Palms Area and Santa Monica)
Clear
SKU: N/A Categories: , , ,

Description

Review from ElectricBikeReview.com
If you don’t have us build it, watch how to assemble yourself(in German)

25-40+ MILES
or
35-50+ MILES
(with upgraded battery)

Per Charge (estimate)

500W to 750W
Peak Output

Variable Watt Geared Hub Motor

48V 13 Ah
or
48V 17 Ah
(with upgrade)

Lithium-Ion Battery

  • Recommended rider heights: 5’2″ – 6’4″
  • Schwalbe Smart Sam Nobby tires 27.5” tires, or 29” tires
  • Aluminum Alloy Comfort Grip Brake Levers with Motor Cutoff Switch
  • Cadence Sensing Pedal Assist, Trigger Throttle
  • Display Amperage Power Meter, Battery Capacity (6 Bars), Speed, Assist Level (0-6), Total Distance, Trip Distance, Travel Time, Max Speed
  • SR Suntour XCT Spring Suspension, 80mm Travel, Compression Adjust with Lockout, Preload Adjust, 28mm Stanchion Diameter, 100mm Hub Spacing, 9mm Axle with Quick Release Skewer
  • 24 Speed 3x8 Shimano Altus Front and Altus Rear Derailleur, Shimano Cassette 14-29 Tooth
  • Tektro MD-M280 Mechanical Disc with 180mm Front Rotor and 160mm Rear Rotor, Four-Finger Levers with Rubberized Edge, Integrated Bell, and Motor Inhibitor on Left
  • Total payload capacity: 275.5 lb
  • Bike Weight: 57.5 lbs with battery

NCM Moscow Key Features

The NCM Moscow Electric Mountain Bike beautifully combines power, versatility, and comfort into a truly unique package that’s just as comfortable on outback fire roads as it is in the concrete jungle of city streets.

48V 500W Nominal Output Das-Kit™ High speed gear motor.

Smooth maintence free power gives just the right amount of kick while the variable wattage allows lower battery usage and longer distances between rides.

Half twist throttle. Twist throttle for full control.

Our speed system isn’t just an on an off, there is full control of how active the thrust is from the motor.

MOZO suspension front fork, with lock-out.

Conquer the bumpiest roads or lock up the suspension for hard surfaces and a better ride

Powerful Battery

Powerful, removable, lockable battery with USB port.

Front/Rear Tektro™ disc brake and Shimano Altus derailer System

Extra Stopping Power when you need it keeps you safe.

Matrix Backlit LCD display showcasing important information

Odometer, trip, speed, motor output, battery indicator, and other advanced settings

Specs

MOTOR BRAND:
Das-Kit X15R
MOTOR TYPE:
Rear-Mounted Geared Hub
MOTOR NOMINAL OUTPUT:
500 watts
MOTOR TORQUE:
80 Newton meters
BATTERY BRAND:
Dehawk H12 (Made by DLG)
BATTERY VOLTAGE:
48 volts
BATTERY AMP HOURS:
13 ah(Optional 16ah Battery)
BATTERY WATT HOURS:
624 wh (Optional 768wh Battery)
BATTERY CHEMISTRY:
Lithium Nickel Cobalt Manganese (Li-NCM)

CHARGE TIME:
6 hours
ESTIMATED MIN RANGE:
30 miles (48 km)
ESTIMATED MAX RANGE:
65 miles (105 km)
DISPLAY TYPE:
Das-Kit L7, Fixed, Backlit, Monochrome LCD, Buttons: +, M, -, (Hold + for 2 Seconds for Backlight, Hold + for 3 Seconds to Clear Trip Distance, Hold – for Walk Mode, Hold + and – for Settings and Enter Code 8018)
READOUTS:
Amperage Power Meter, Battery Capacity (6 Bars), Speed, Assist Level (0-6), Total Distance, Trip Distance, Travel Time, Max Speed
DISPLAY ACCESSORIES:
Full Size USB Type A Port on Right Side of Battery (5 Volt, 500 mA)
DRIVE MODE:
Cadence Sensing Pedal Assist, Trigger Throttle (Sealed 12-Magnet Sensor)
TOP SPEED:
25 mph (40 kph)(20 MPH Throttle, Adjustable)

TOTAL WEIGHT:
57.5 lbs (26.08 kg)
BATTERY WEIGHT:
9.2 lbs (4.17 kg)
MOTOR WEIGHT:
10 lbs (4.53 kg)
FRAME MATERIAL:
6061 Aluminum Alloy
FRAME SIZES:
19 in (48.26 cm)20.5 in (52.07 cm)
GEOMETRY MEASUREMENTS:
Medium: 19″ Seat Tube, 22.5″ Reach, 28.5″ Stand Over Height, 33.5″ Minimum Saddle Height, 27.5″ Width, 72″ Length, Large: 20.5″ Seat Tube, 22.5″ Reach, 30″ Stand Over Height, 35.5″ Minimum Saddle Height, 27.5″ Width, 74″ Length
FRAME TYPES:
High-Step
FRAME COLORS:
Satin Black with Blue Accents
FRAME FORK DETAILS:
SR Suntour XCT Spring Suspension, 80mm Travel, Compression Adjust with Lockout, Preload Adjust, 28mm Stanchion Diameter, 100mm Hub Spacing, 9mm Axle with Quick Release Skewer
FRAME REAR DETAILS:
135mm Hub Spacing, 12mm Keyed Threaded Axle with 20mm Nuts
ATTACHMENT POINTS:
Fender Bosses, Rear Rack Bosses, Bottle Cage Bosses
GEARING DETAILS:
24 Speed 3×8 Shimano Altus Front and Altus Rear Derailleur, Shimano Cassette 14-29 Tooth
SHIFTER DETAILS:
Shimano Triggers on Left and Right (One-Way High Lever, Three-Shift Low Lever)
CRANKS:
Shimano FC-M311, Forged Aluminum Alloy Arms, 170mm Length, Square Taper Bottom Bracket Spindle, 48-38-28 Tooth Steel Chainrings
PEDALS:
Wellgo B087 Aluminum Alloy Platform with Fixed Pins, Black
HEADSET:
Neco, Integrated, Threadless Internal Cups, Tapered 1-1/8″ to 1-1/2″
STEM:
Promax, Alloy, 90mm Length, 31.8mm Clamp Diameter, One 15mm Spacer, Two 10mm Spacers, One 5mm Spacer
HANDLEBAR:
Flat, Aluminum Alloy, 680mm Length

BRAKE DETAILS:
Tektro MD-M280 Mechanical Disc with 180mm Front Rotor and 160mm Rear Rotor, Four-Finger Levers with Rubberized Edge, Integrated Bell, and Motor Inhibitor on Left
GRIPS:
Velo, Ergonomic Rubber, Locking
SADDLE:
Velo, Active
SEAT POST:
Promax, Aluminum Alloy, Forged Head
SEAT POST LENGTH:
350 mm
SEAT POST DIAMETER:
30.9 mm
RIMS:
Aluminum Alloy, Double Walled, 25mm Outer Width, 36 Hole, Black
SPOKES:
Stainless Steel, 13 Gauge, Silver with Nipples
TIRE BRAND:
Schwalbe Smart Sam, 29″ x 2.25″ (57-622)
WHEEL SIZES:
27.5 in (69.85cm)29 in (73.66cm)
TIRE DETAILS:
26 to 54 PSI, 1.8 to 3.7 BAR, Performance, ADDIX Compound
TUBE DETAILS:
Schrader Valve
ACCESSORIES:
Plastic Flick Bell, Sticker Slap Guard, Steel Derailleur Guard, Center Mount Adjustable Kickstand
OTHER:
Locking Removable Semi-Integrated Downtube Battery Pack (Reention Cylinder and Key), 9 Mosfet 18 Amp Current Controller, 1.5lb 2 Amp Charger, Sine Wave Controller, Basic Assembly Toolkit, 275.5lb Max Load

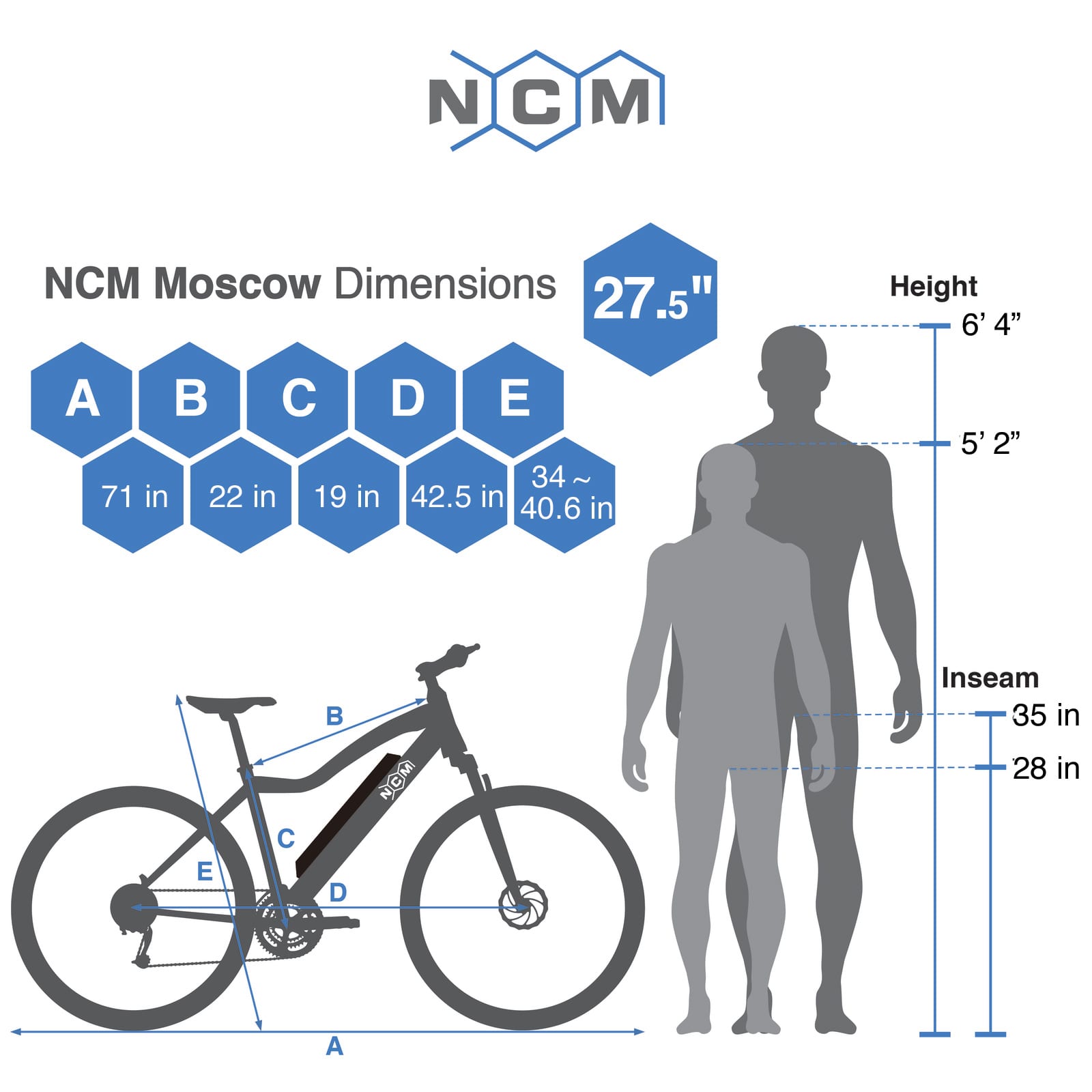

Sizing

Performance

48V and 13.5Ah  of Pure, Clean Power or 48V 17.5Ah for Extended Range!

ONE of the most important components on any ebike is its battery. If you can’t trust the juice flowing through its veins, your ebike is better off sitting in the garage than taking you on your next adventure. With over a decade of designing and building ebikes under our belts, we’ve seen firsthand the downfalls of using low-quality cells. And trust us, it ain’t pretty.

A high-capacity battery like this isn’t something you cheap out on. NCM designed and built their batteries using genuine Samsung 26E cells, which are some of the most energy-dense and reliable lithium-ion cells on the market today.

25-40+ MILES
or
35-50+ MILES
(with upgraded battery)

Per Charge (estimate)

48V 13 Ah
or
48V 17 Ah
(with upgrade)

Lithium-Ion Battery

Compact, Discreet, Maintenance-Free

Since the beginning, we’ve been huge fans of hub motors for their performance, ease of use, and versatility. The 500W to 750W Peak Output Das-Kit Geared Hub Motor is the epitome of why we love hub motors and it is only natural we’ve outfitted the RadRover with it.

With 500W  and 80Nm of torque at your disposal, and boosting to 800W when you need it, this motor is what is going to help power you up steep inclines and get you up to top speed quickly from a dead stop, all while remaining quiet and inconspicuous and maintaining a longer ride distance. Its got just the right power when you need it, and wont waste the power when you don’t leading to a longer distance ride time. These kinds of numbers aren’t even found on some of the most expensive mid drive systems out there, so prepare to outperform and outclass everyone you see on the road.

500W to 750W
Peak Output

Variable Watt Geared Hub Motor

80Nm

Max Torque

LCD Backlit Display

All the information you need at the tips of your fingers.

The NCM LCD Matrix display provides you with all the information you need when out on a ride. It’s securely mounted directly to the handlebars and the display angle can be adjusted to accommodate different sized riders.

Speedometer

Full speed ahead with the large speed display; can be set to current speed, max speed, or average speed

Pedal Assist Level

Indicates the pedal assist level. The higher the number the more the motor will boost you when you pedal.

USB Charging (in battery)

Charge your phone or portable electronics on the go with the provided USB port. A full 1A allows for quicker charging than lower amp power sources.

Wattmeter

A handy power meter to show you how much electricity you are using at any given time.

Battery Life

A fuel gauge for your electrons.

Trip Odometer

See how far you go on your next epic adventure.

Odometer

Calculate how many miles you didn’t drive this year and how much money you saved on gas!
